WEIYA offers innovative tool storage solutions tailored to meet the specific requirements of custom press brakes. These solutions include the Tool Station, a modular tooling storage and changing system, and standard tooling cabinets. These products are designed to accommodate both standard and custom press brake tooling with ease and efficiency. With WEIYA’s tool storage solutions, fabricators can access the necessary tools quickly and efficiently, resulting in increased productivity and enhanced workflow.

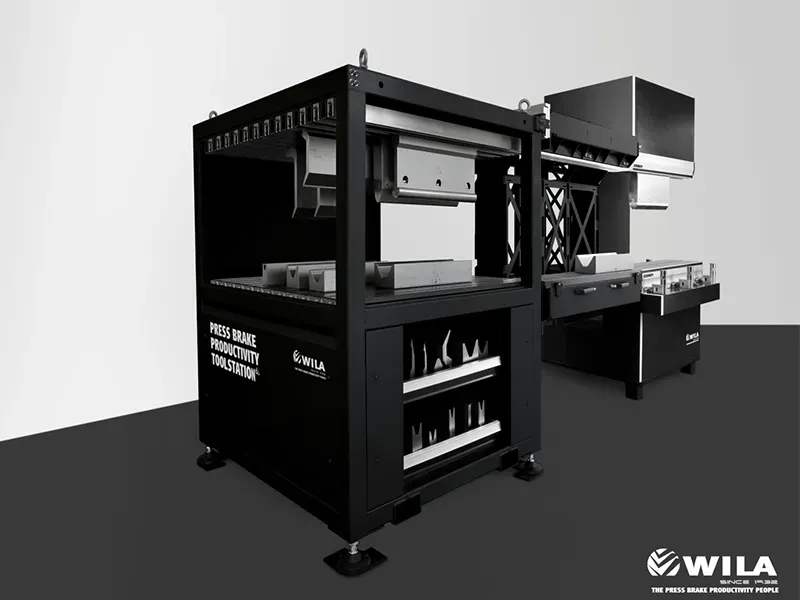

WEIYA offers two versions of the Press Brake Productivity Tool Station, which are specifically designed for the secure exchange and storage of WILA tooling. The first version, the ‘HD’ version, is developed to accommodate very large and heavy tools and is compatible with the NSCL-HD-II-HC Heavy Duty Clamping system. The second version is suitable for smaller tools and works seamlessly with the WILA Premium Clamping system. Both versions of the Tool Station are engineered to ensure safe and efficient tool storage and exchange, thereby promoting enhanced productivity and optimized workflow in press brake operations.
The Tool Station is designed to interface with the press brake through two loading and unloading arms equipped with a roller and ball bearing system. This enables safe, effortless, and quick storage, loading, and unloading of punches and dies of various sizes. By utilizing our Tool Station, you can significantly enhance the working conditions of your operators and optimize your productivity.
WEIYA provides two versions of the Press Brake Productivity Tool Station, each designed to facilitate secure exchange and storage of WILA tooling. The ‘HD’ version is specifically engineered for effortless exchange and storage of large and heavy tools and is compatible with the NSCL-HD-II-HC Heavy Duty Clamping system. The regular version is optimized for smaller tools and works seamlessly with the WILA Premium Clamping system. Both versions of the Tool Station are designed to ensure safe and efficient storage and exchange of press brake tooling, thereby enhancing productivity and optimizing workflow.
Dimensions approximately 2500mm x 1500mm (floor plan incl. arm)

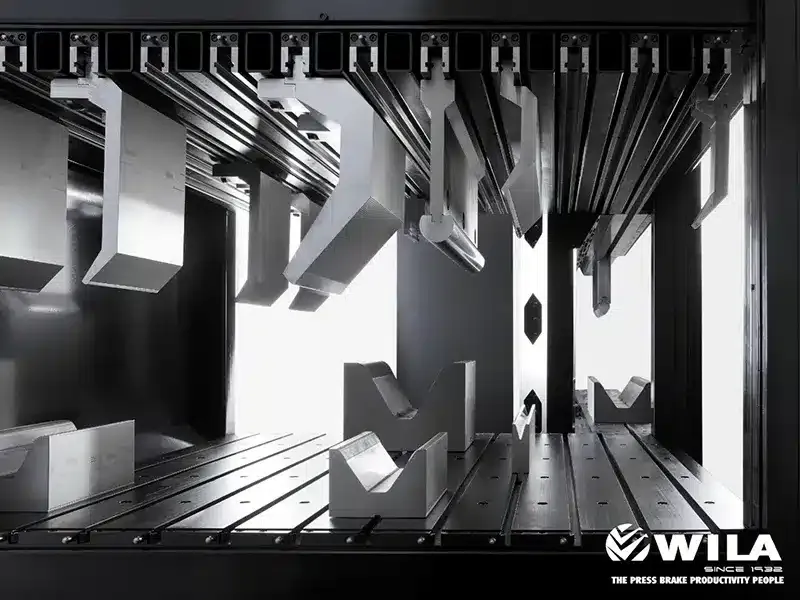

Has a storage capacity of 12 meters for punches and 12 meters for dies.
Equipped with a load/unload arm that can handle both top and bottom operations on the left side. The arm has a length of approximately 1150mm.
Equipped with an upper storage and load/unload arm designed to support the E2M ‘centric’ system.
Max allowable load on the load/unload arm is 250 kg.
The loading surface height for the dies can be adjusted between 940mm and 1065mm above the floor.
Daylight opening 490mm
Loading and unloading is possible at all storage positions.
Sheet metal covers on top and all 4 sides
Tooling area accessible from 3 sides
Color “Wila black”
Compatible with NS-tools that have a maximum width of 300mm and are centric against the centerline.
Guards are designed to be compatible with New Standard HC Tool Holders made by Wila.
Options
Alternative daylight opening
ToolStation load/unload arm on right side
2 rolling shutters (one to the front and one opposite of load/unload arm)
Color according to customers request
Support rail under load/unload arm
Cabinet, containing 2 drawers (max. load 200kg each) built into the base
Illumination, positioned in the upper section
Additional ToolStation module, without load/unload arm
