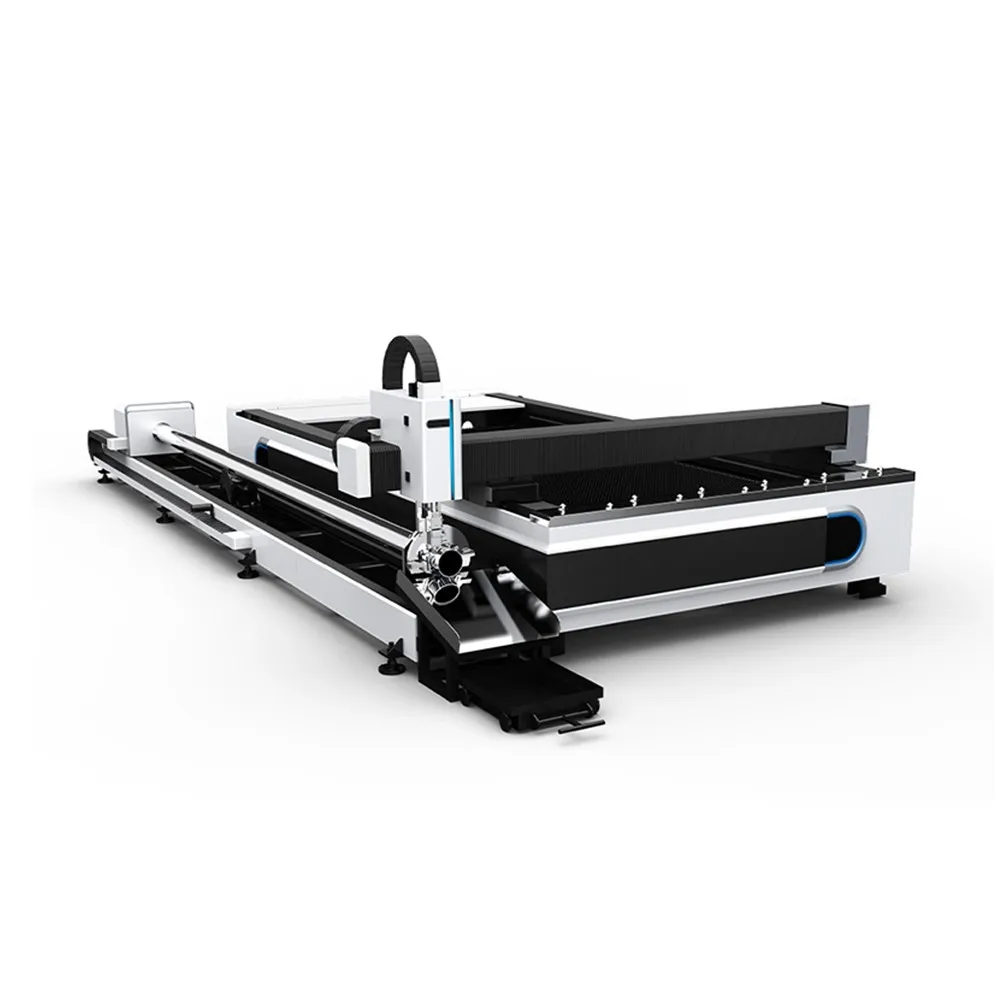

The WEIYA sheet and tube integrated laser cutting machine serves as a comprehensive all-in-one solution, enabling seamless processing of both sheet metal and tubes. Integrating ultra-high precision with robust performance, it delivers burr-free cuts and achieves near-zero material waste, whose processing quality surpasses industry benchmarks. Fitted with an intelligent CNC control system and automatic focusing capability, it is compatible with a variety of metal materials such as carbon steel, aluminum alloy, and stainless steel. This machine helps enterprises boost production efficiency by more than 50% while substantially cutting down on labor and material costs, making it a core piece of equipment for modern metal processing companies aiming to reduce costs, enhance efficiency, and expand their business scope.
Dual-purpose machine, capable of processing metal sheets and various metal pipes, improving work efficiency.

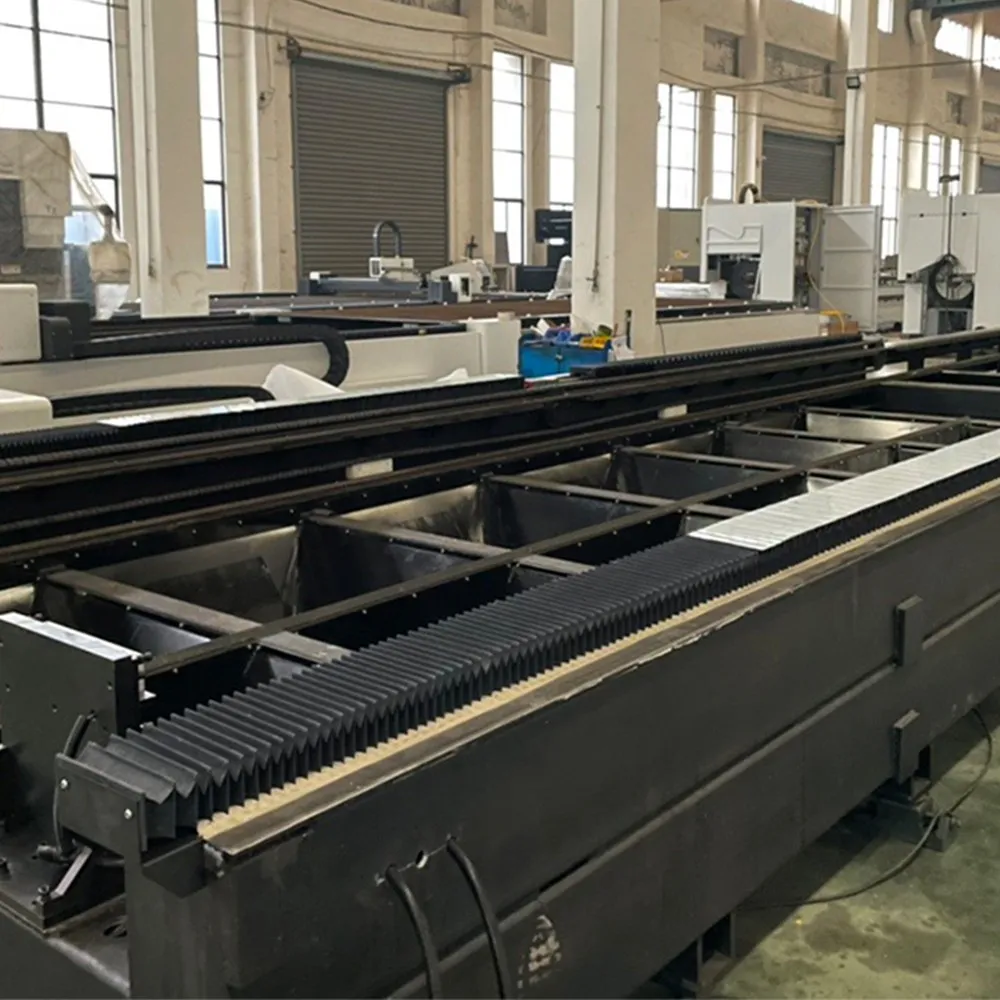

Sturdy steel worktable ensures the machine will not deform for many years.

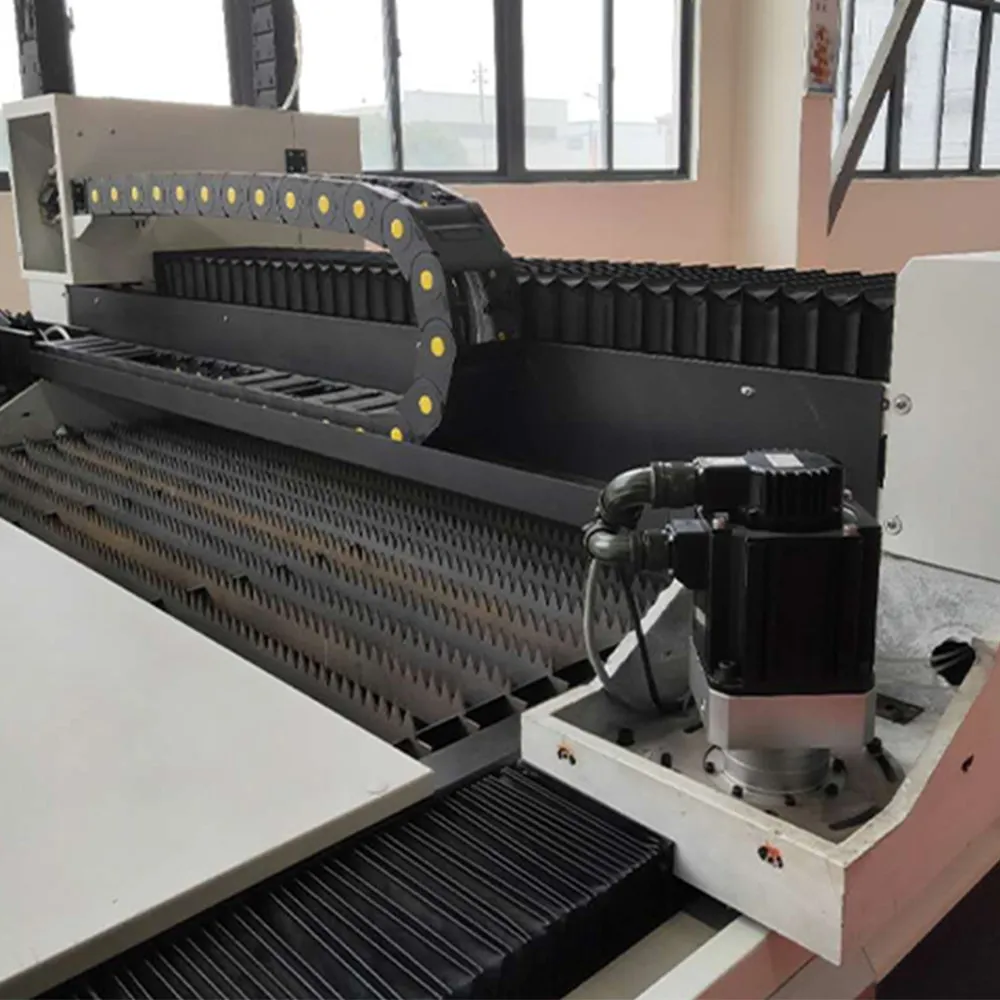

Utilizes world-class guide rails and racks to guarantee cutting precision.
Professional CNC pipe cutting system, easy to operate and maintain.
Employs imported high-end components to ensure powerful cutting capabilities and efficiency.
| WST Sheet ＆Tube Laser Cutter Technical Parameters | |
| Maximum Machining Range | 1500×3000mm |
| X-axis Travel | 1500mm |
| Y-axis Travel | 3000mm |
| Z-axis Travel | 200MM |
| X/Y-axis Positioning Accuracy | ±0.03mm |
| X/Y-axis Repeatability | ±0.02mm |
| X/Y-axis Maximum Moving Speed | 80m/min |
| Maximum Acceleration | 0.8G |
| Maximum Load Capacity of Working Platform | Platform600kg/Tube Cutting300kg |
| Guide Rails | DTX (HIWIN optional) |
| X-axis Guide Rail Width | 20MM |
| Y-axis Guide Rail Width | Platform30MM. Tube Cutting35MM. |
| Rack and Pinion | YYC |
| Gear Reducer | MODROL |
| Ball Screw | TBI |
| Electrical Components | CHINT (Schneider optional) |
| Pneumatic Components | CKD / Aventics (Germany) |
| Lubrication Method | Automatic Oil Injection |

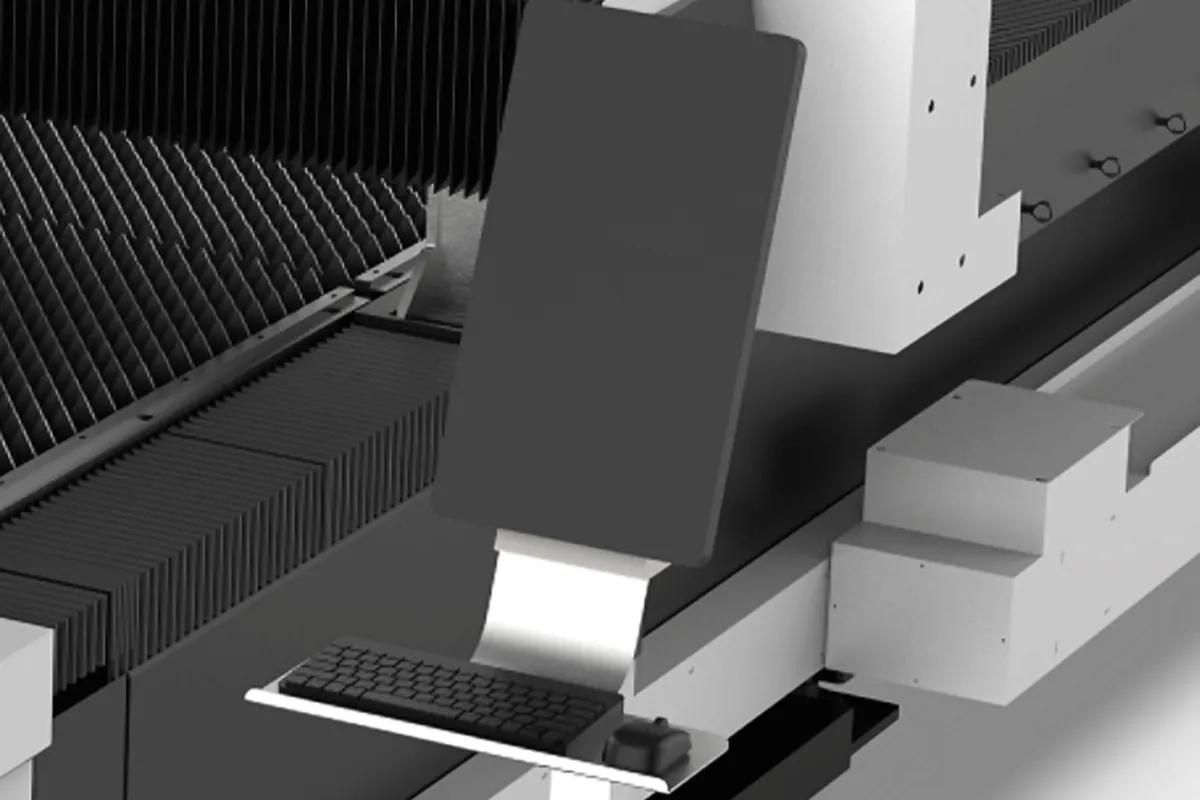

| Control System | BCL |
| Servo System | Inovance - X,Y: 850W, Z: 400W |
| Compatible Laser Power | 1-6kw |
| Overall Dimensions (Length*Width*Height) | 9150*4300*2300 |
| Machine Weight | 3000KG |

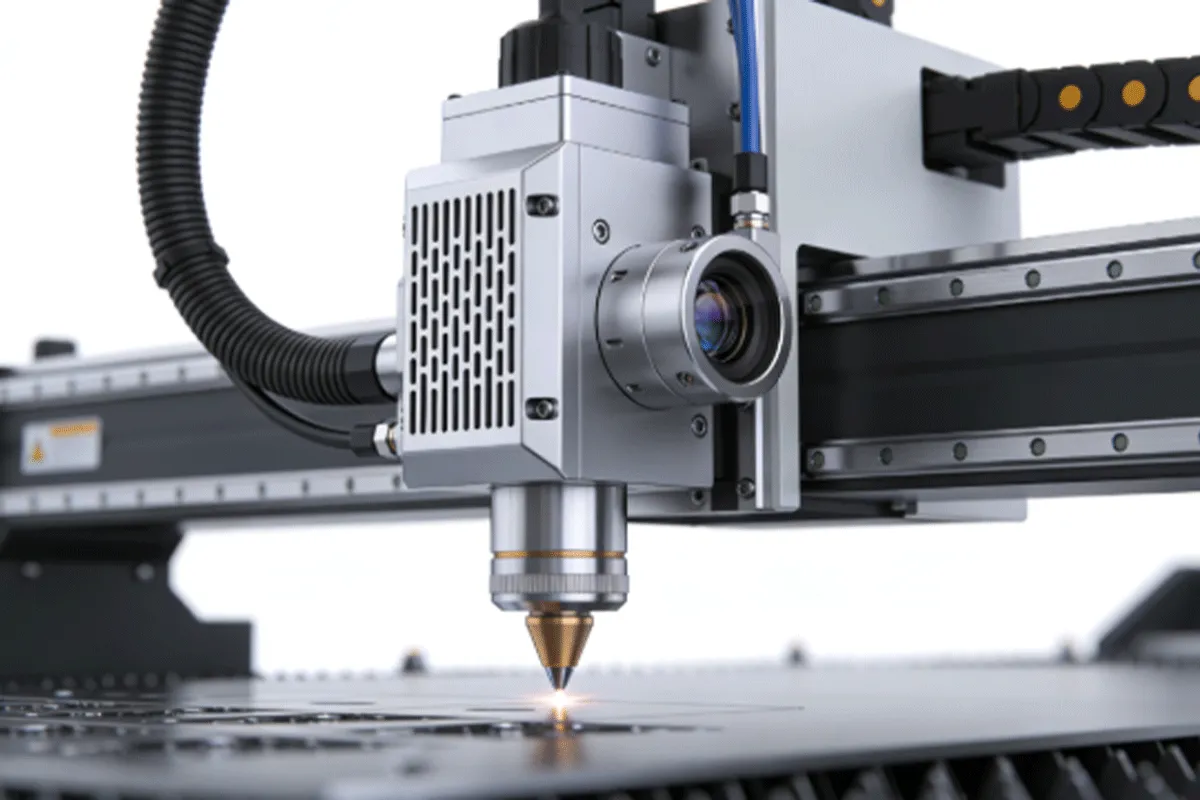

Raytools laser cutting heads utilize Swiss RAY-TOOLS technology and feature an efficient optical design, enabling fast and precise piercing and cutting of various metal materials. They offer excellent stability and cutting quality, making them suitable for complex and high-precision processing requirements.
This laser cutting system supports a variety of advanced functions, such as automatic workpiece edge detection, automatic focus control, dual-station operation, breakpoint positioning, QR code generation, and material remnant cutting.

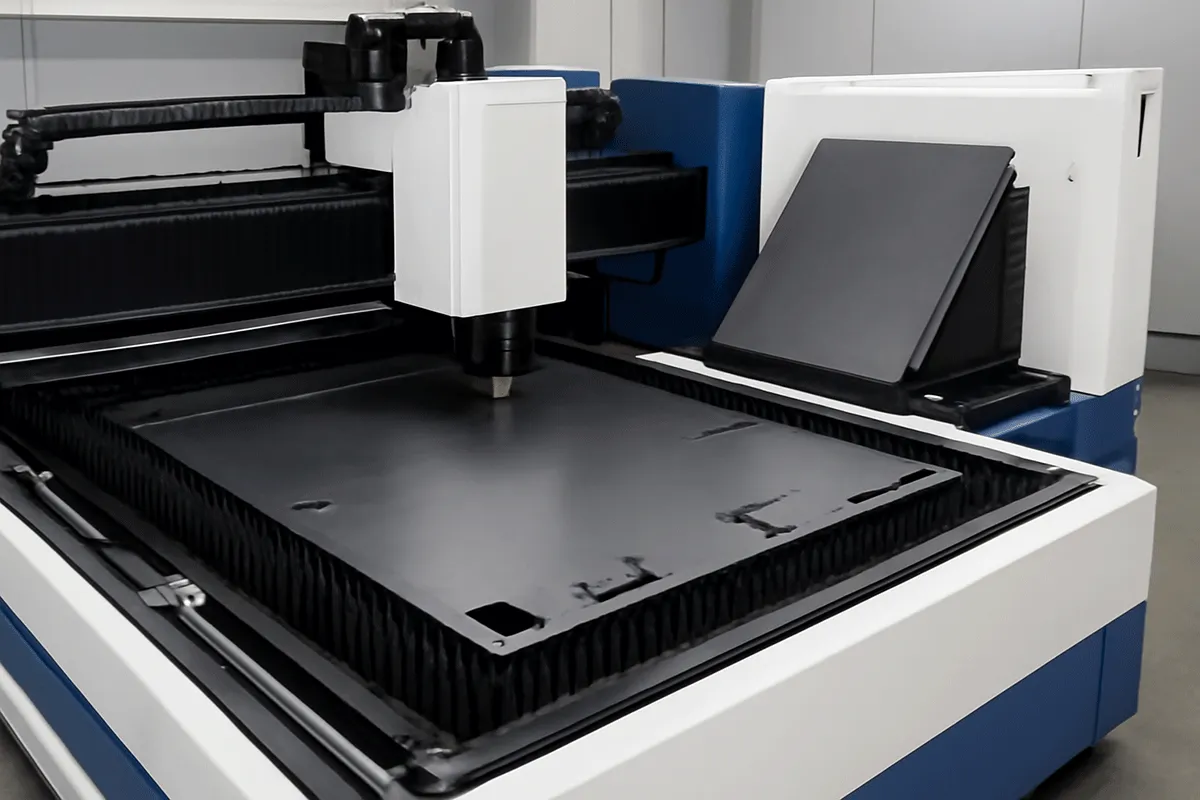

Less time to change plates for cutting,increasing productivity changing tables takes about 16 seconds.Electric motor controlled by frequency inverter for ease of use and durability of the mechanical assembly.

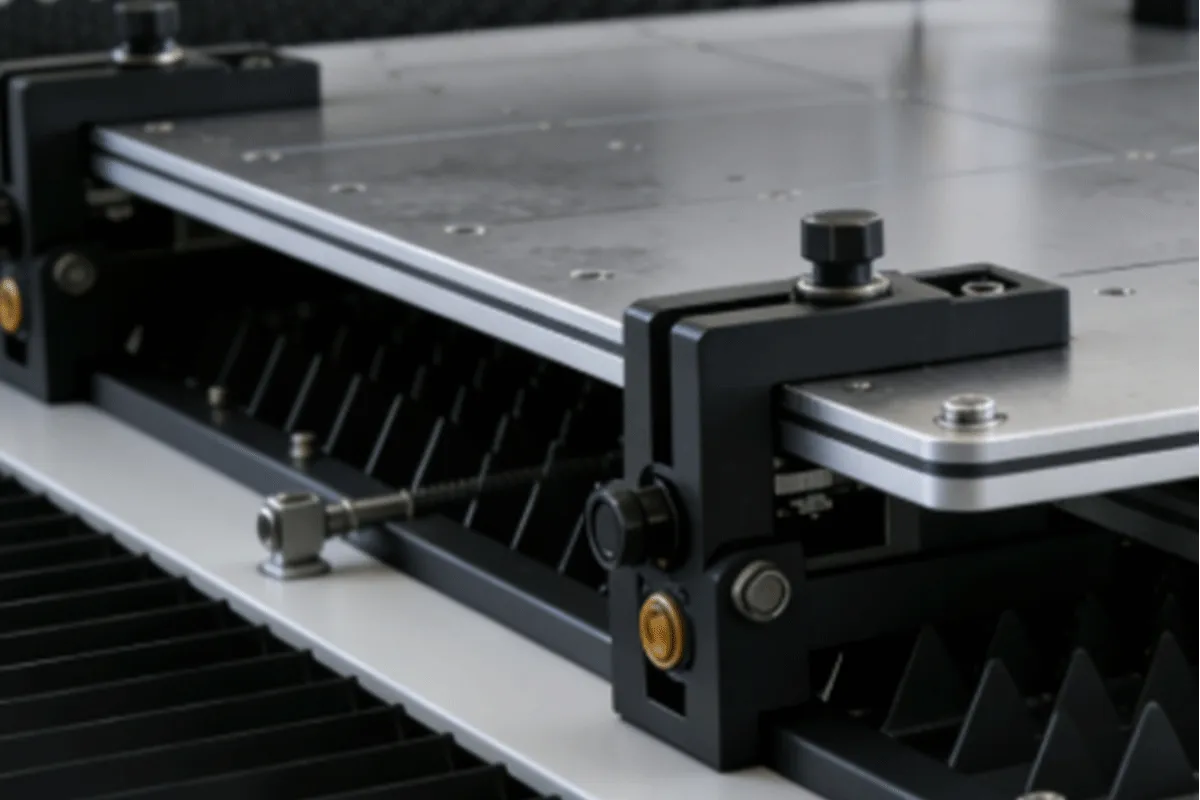

This fixture features a double-sided electric clamping design, enabling automatic adjustment of the center position to ensure stable clamping of the workpiece. Its diagonal adjustment range is 20-200 millimeters, accommodating workpieces of different sizes and effectively improving processing accuracy and efficiency.

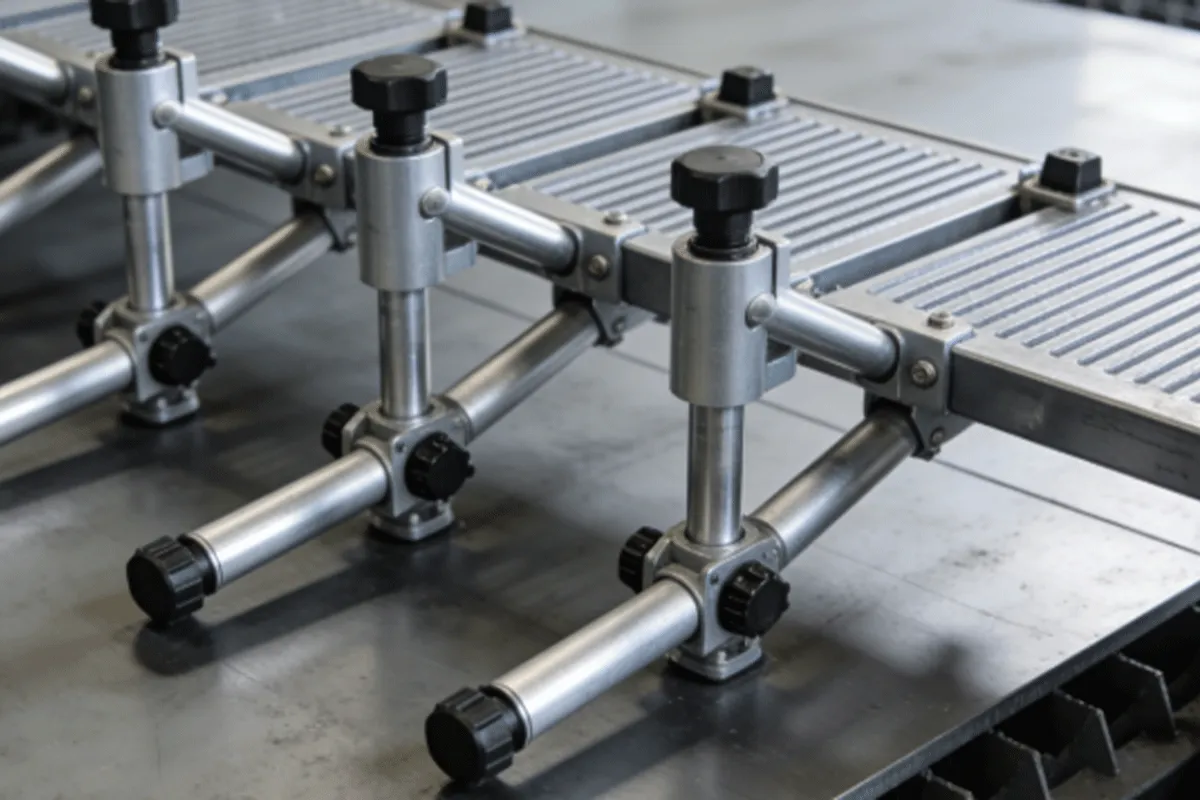

This equipment features an intelligent pipe support design, which effectively supports the pipe during long pipe cutting processes, preventing deformation caused by uneven stress or thermal expansion, ensuring cutting accuracy and processing quality, and improving overall production stability.

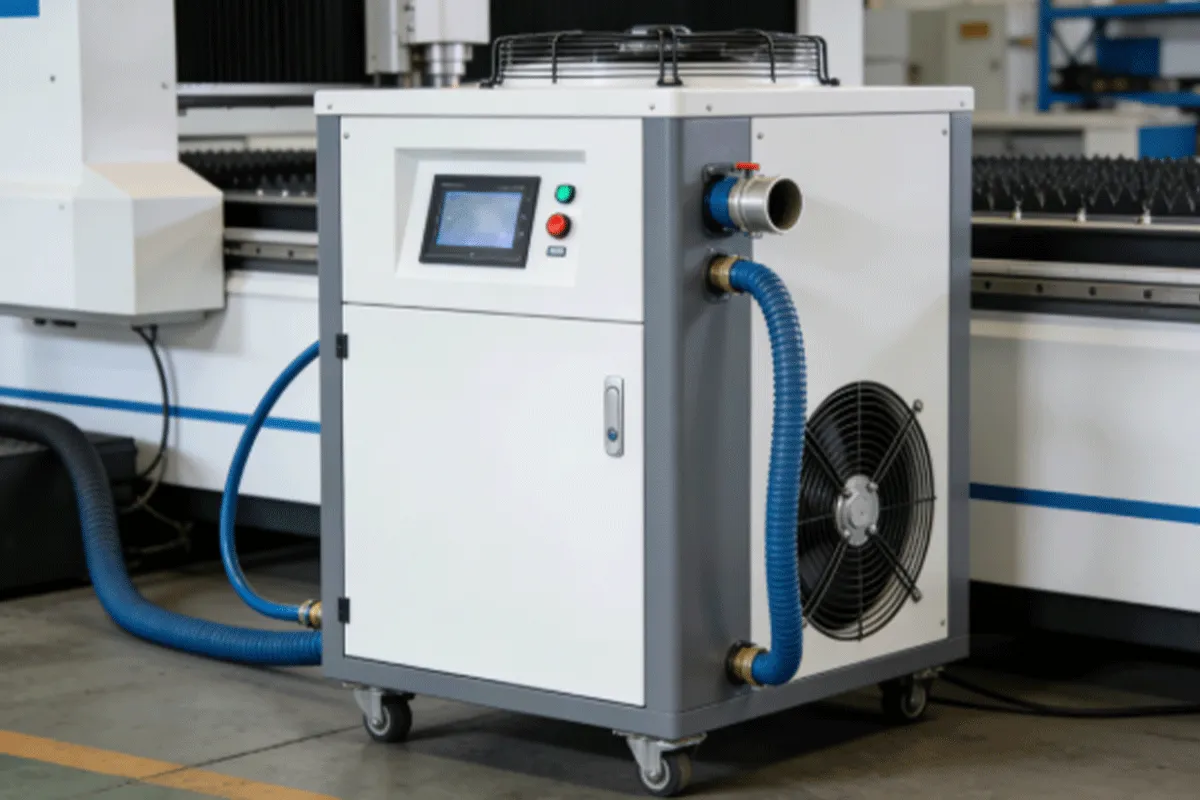

The machine is equipped with over-temperature alarms, flow protection, and water level protection devices to prevent hazards and ensure reliable operation. Comprehensive safety features prevent overheating and flow problems, thereby improving durability and operational efficiency.
