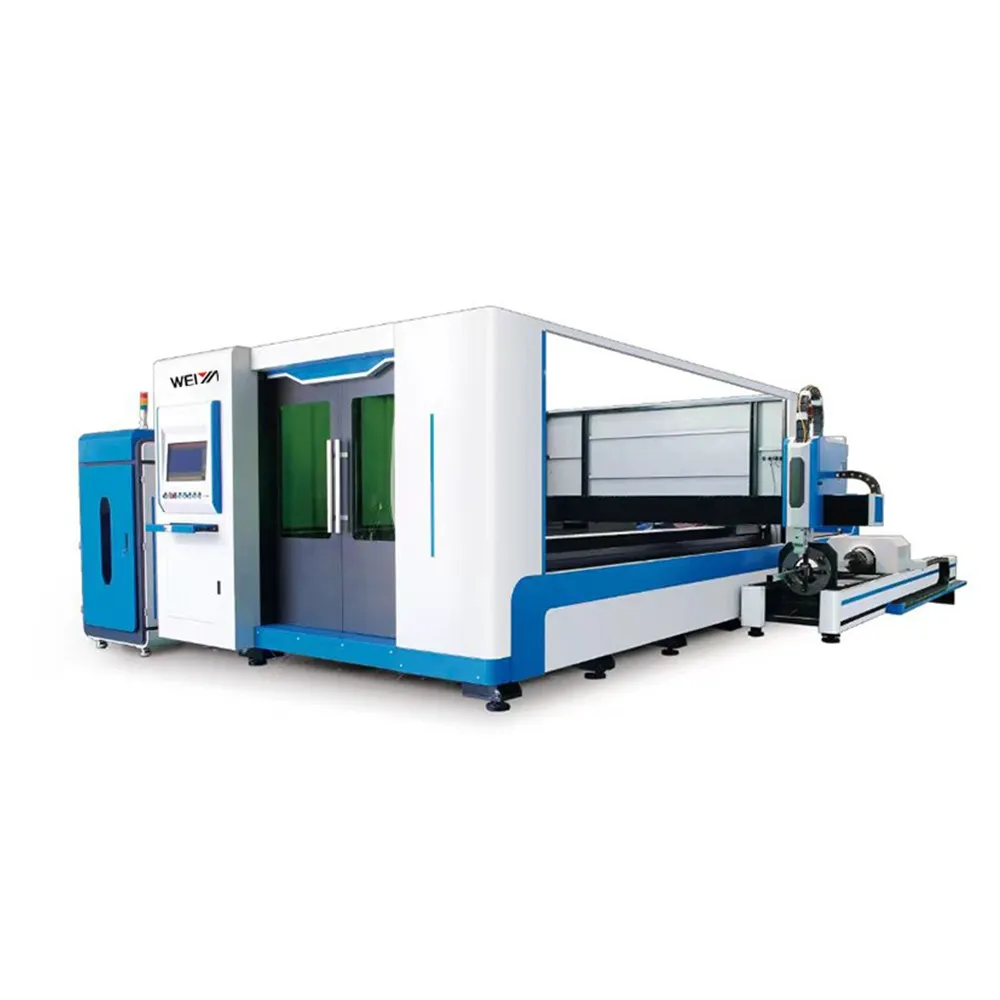

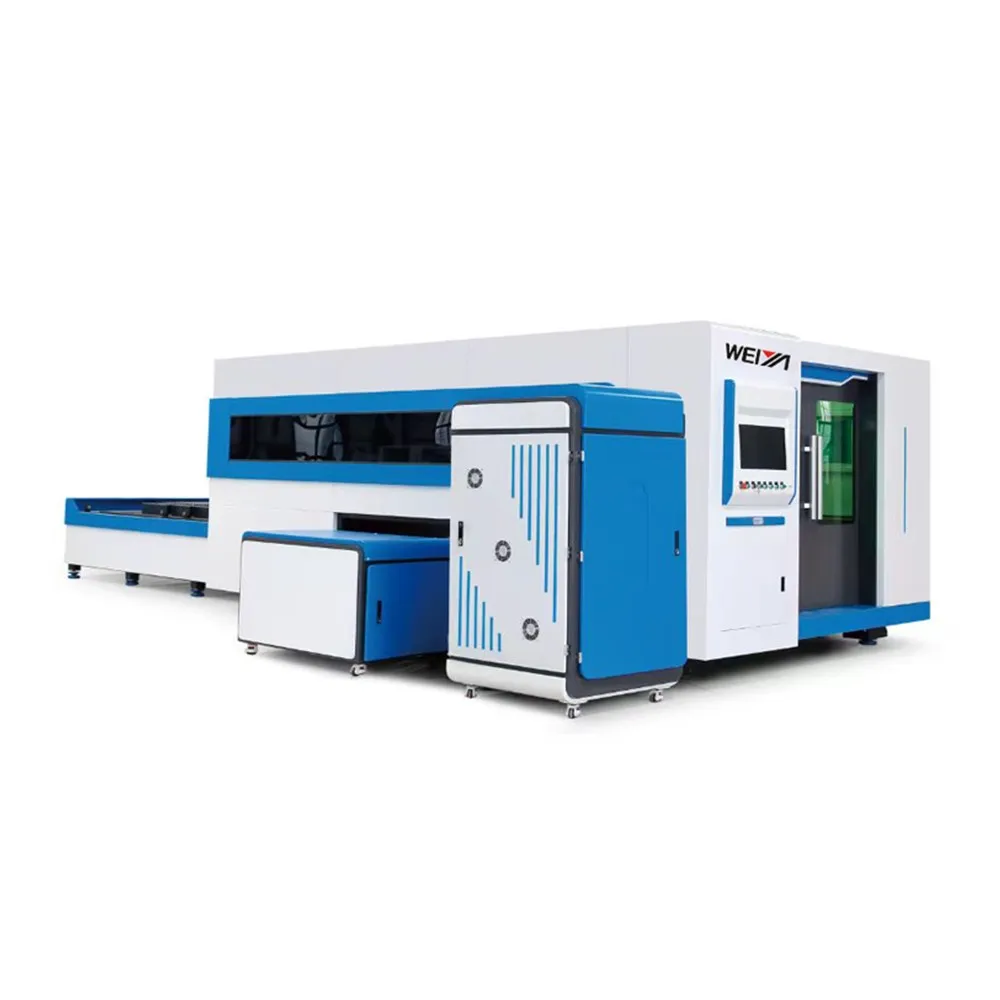

WEIYA SG series is the model with the most high-end configuration of DXTECH. It has a fireproof and anti-electricity protection structure, negative pressure double row partition dust removal, the best dust removal effect and high safety factor. The power of this machine is 8-20KW, suitable for customers who cut 25-100mm metal plates.
Fiber laser cutting machine, suitable for cutting metal sheets, equipped with Raycus/IPG/MAX power supply.
Uses imported original fiber laser, stable performance.
High cutting speed, equipped with a switching platform for higher efficiency.
Uses imported transmission mechanism and servo motor, high cutting precision.
Dedicated software allows for immediate graphic or text design or processing, flexible and convenient operation.
Fireproof and electrical-resistant structure, negative pressure double-row dust removal, optimal dust removal effect, high safety factor.

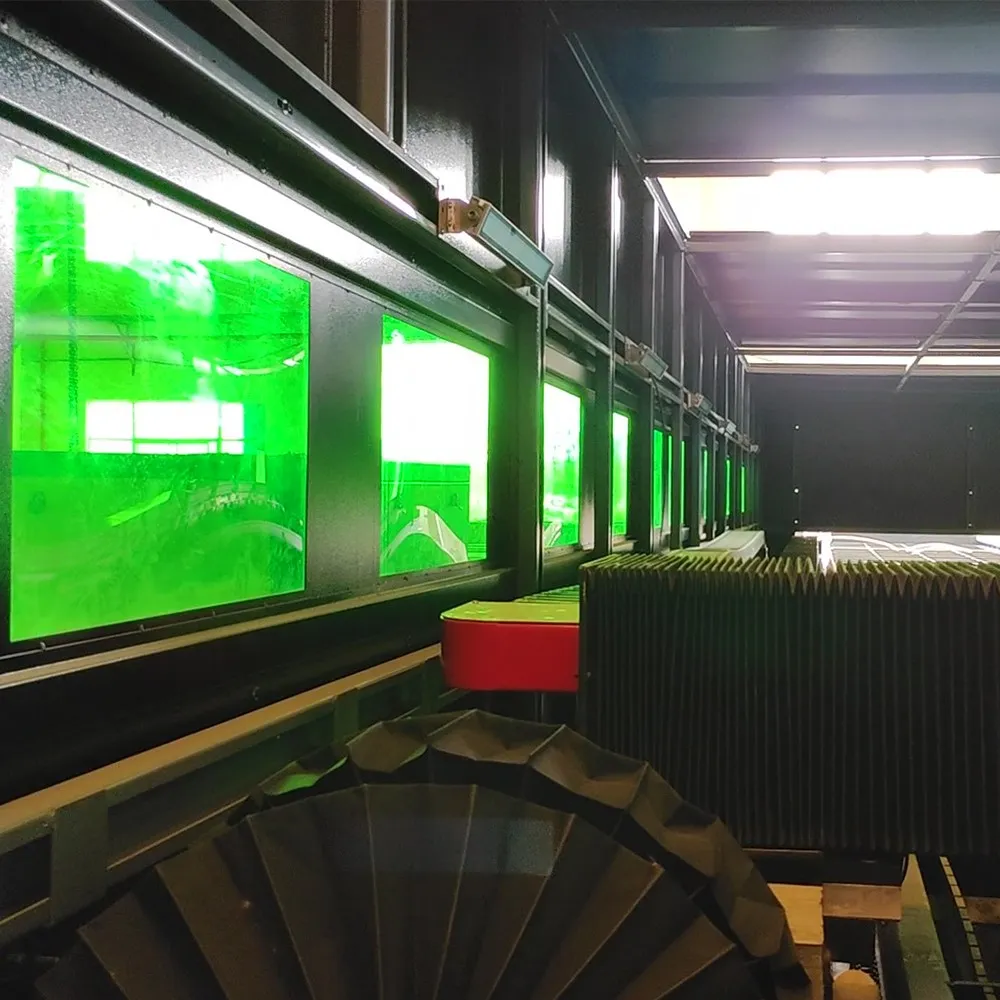

Dual internal and external monitoring system, CE certified glass protective cover, high level of eye protection.
| WSE Enclosed Laser Cutter Technical Parameters | |
| Maximum Machining Range | 1500×3000mm |
| X-axis Travel | 1500mm |
| Y-axis Travel | 3000mm |
| Z-axis Travel | 340mm |
| X/Y-axis Positioning Accuracy | ±0.03mm |
| X/Y-axis Repeatability | ±0.02mm |
| X/Y-axis Maximum Moving Speed | 100M/MIN |
| Maximum Acceleration | 1.2G |
| Maximum Load Capacity of Working Platform | 800kg |
| Guide Rails | DTX (HIWIN optional) |
| X-axis Guide Rail Width | 25MM |
| Y-axis Guide Rail Width | 35MM |
| Rack and Pinion | YYC |
| Gear Reducer | MODROL |
| Ball Screw | TBI |
| Electrical Components | CHINT (Schneider optional) |
| Pneumatic Components | CKD / Aventics (Germany) |
| Lubrication Method | Automatic Oil Injection |
| Control System | BCL |
| Servo System | X: Inovance 0.85KW (Max. configuration: 1.3KW) Y: Inovance 1.3KW (Optional: 1.8KW/2.9KW) Brand option: Yaskawa Z: Inovance 0.75KW |
| Compatible Laser Power | 1-12kw |
| Overall Dimensions (Length*Width*Height) | 8580*2880*2300 |
| Machine Weight | 5900KG |

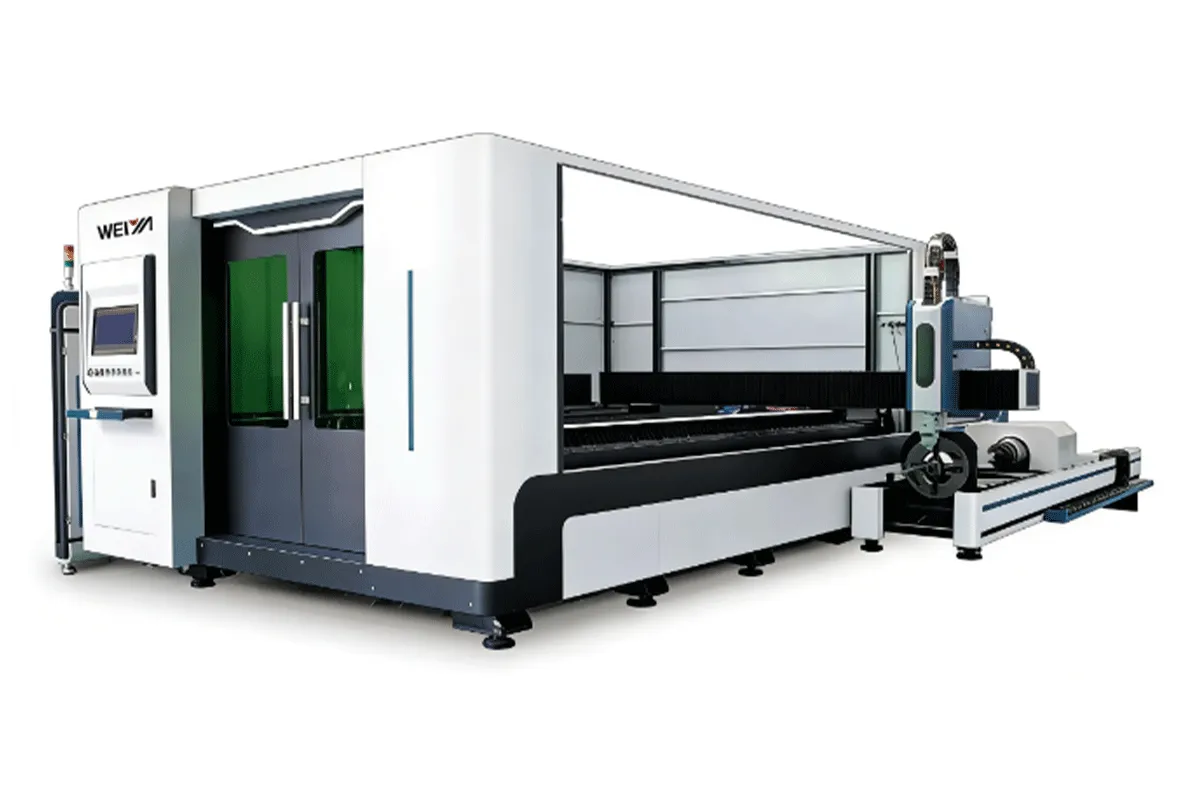

The brand-new machine tool design features a partitioned worktable structure, which not only effectively isolates heat transfer and prevents the machine tool from deforming due to thermal expansion, thus improving overall stability, but also incorporates dust removal technology that effectively cleans up smoke and dust generated during the cutting process, ensuring a safe and pollution-free working environment.

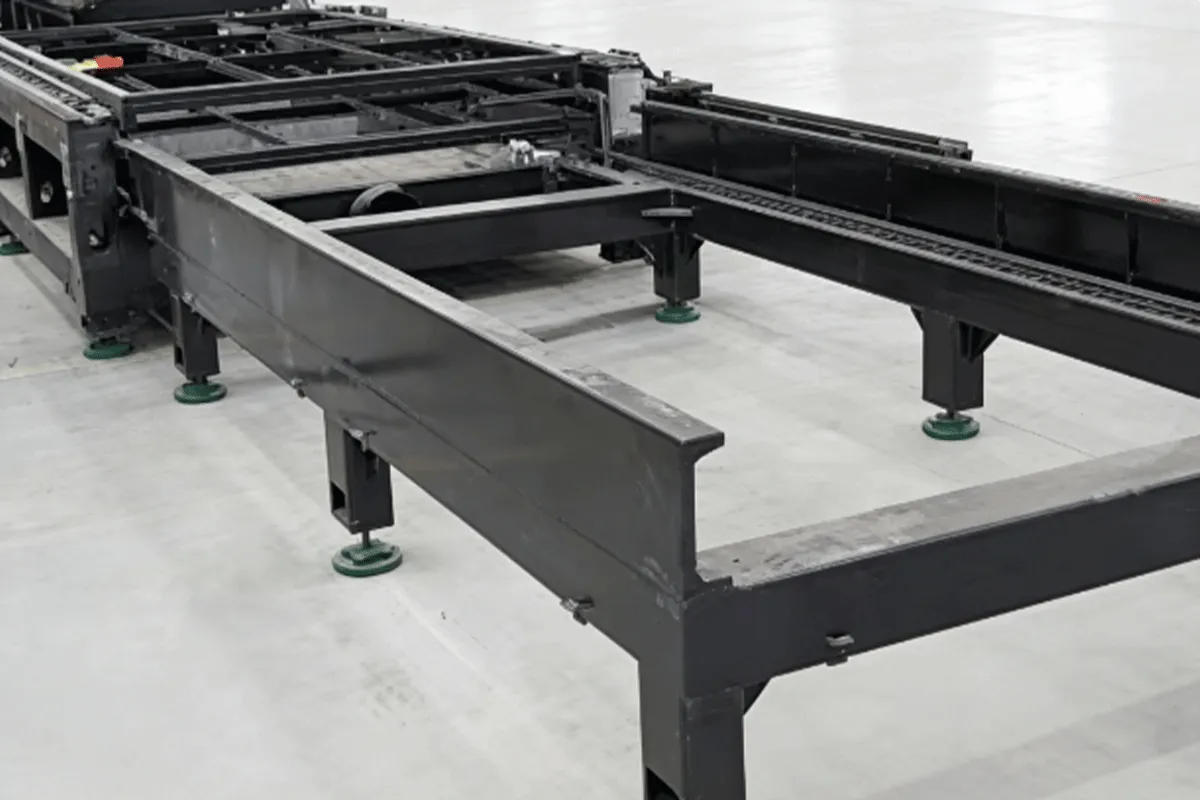

Through the automation device, the adjacent stations are assisted to operate on the exchange platform to achieve continuous production, thereby improving production efficiency. The laser cutting machine using the exchange platform can achieve efficient batch production and continuous processing.

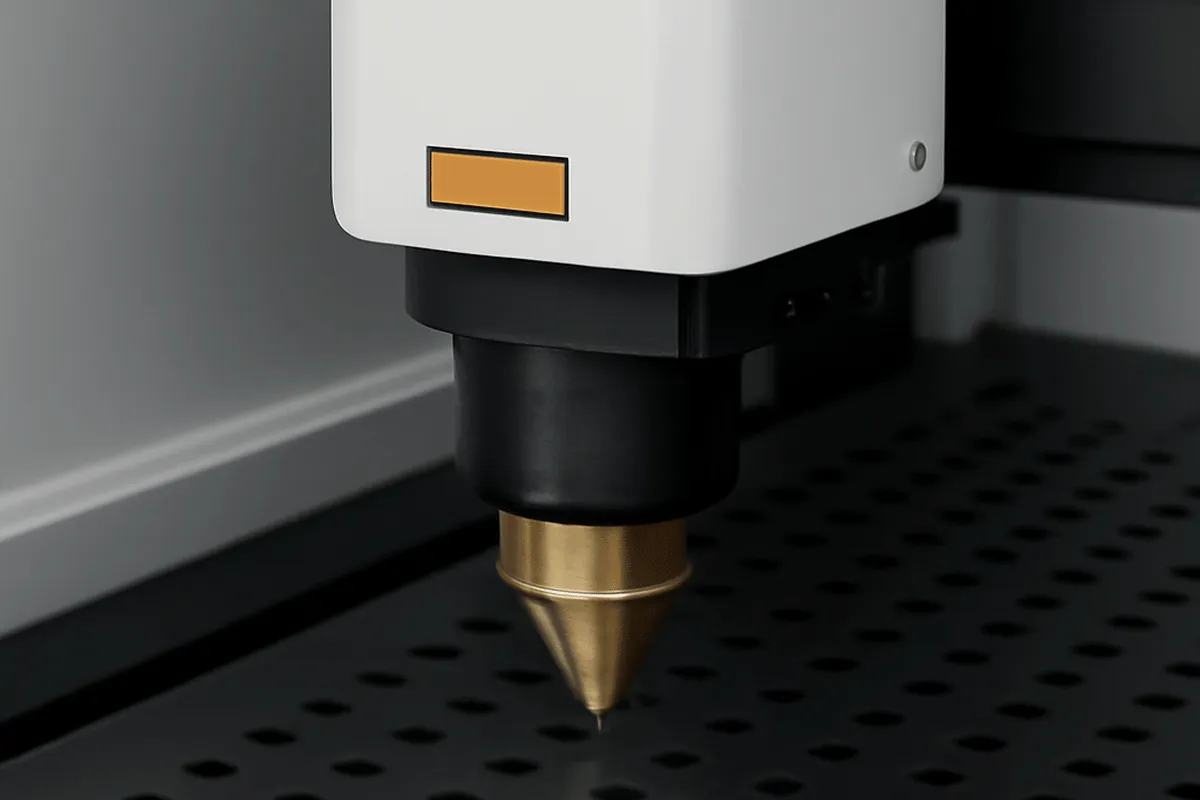

This laser head is manufactured using advanced technology and high-quality materials, ensuring high performance and a long lifespan.The laser cutting head features stable and reliable performance, and its fully sealed design effectively prevents dust contamination of the optical components, guaranteeing cutting quality and the long-term stable operation of the equipment.

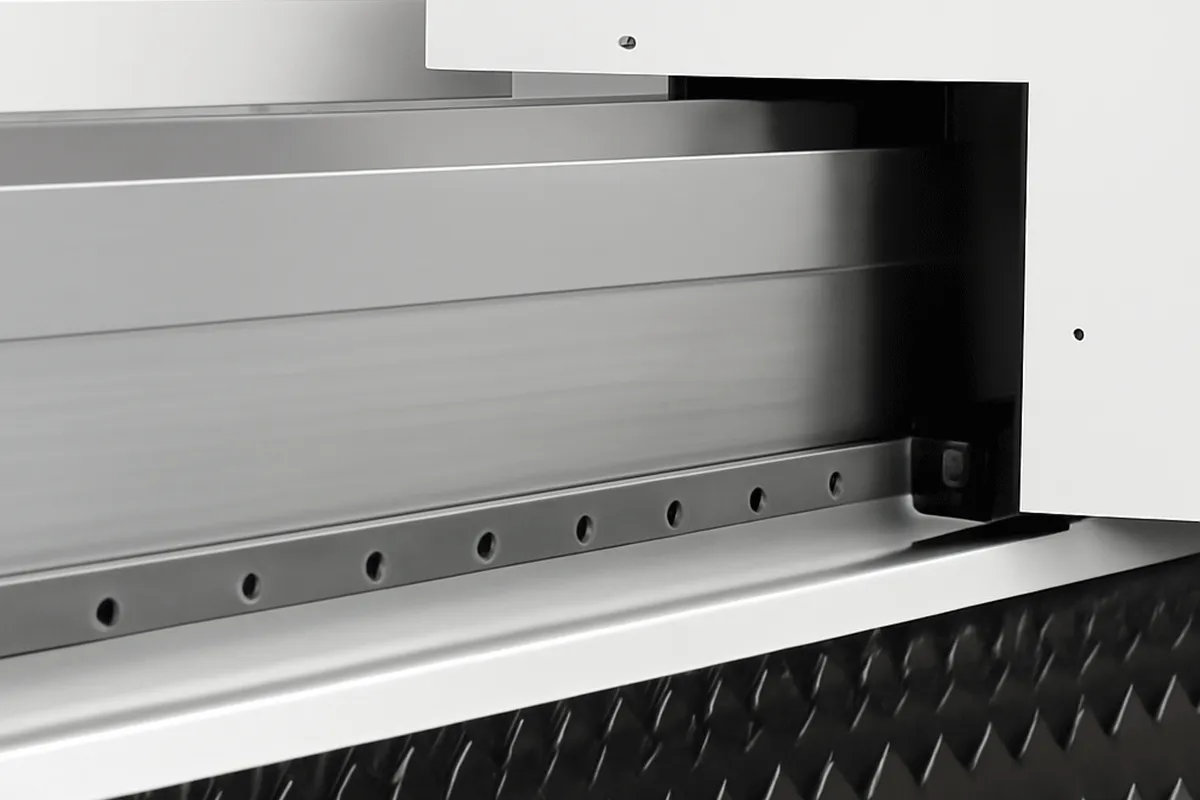

The beam adopts a lightweight casting structure, is annealed to eliminate internal stress and then roughed, and then finished after secondary vibration aging treatment, which better solves the stress caused by casting and rocessing, thereby improving the stability of the beam.

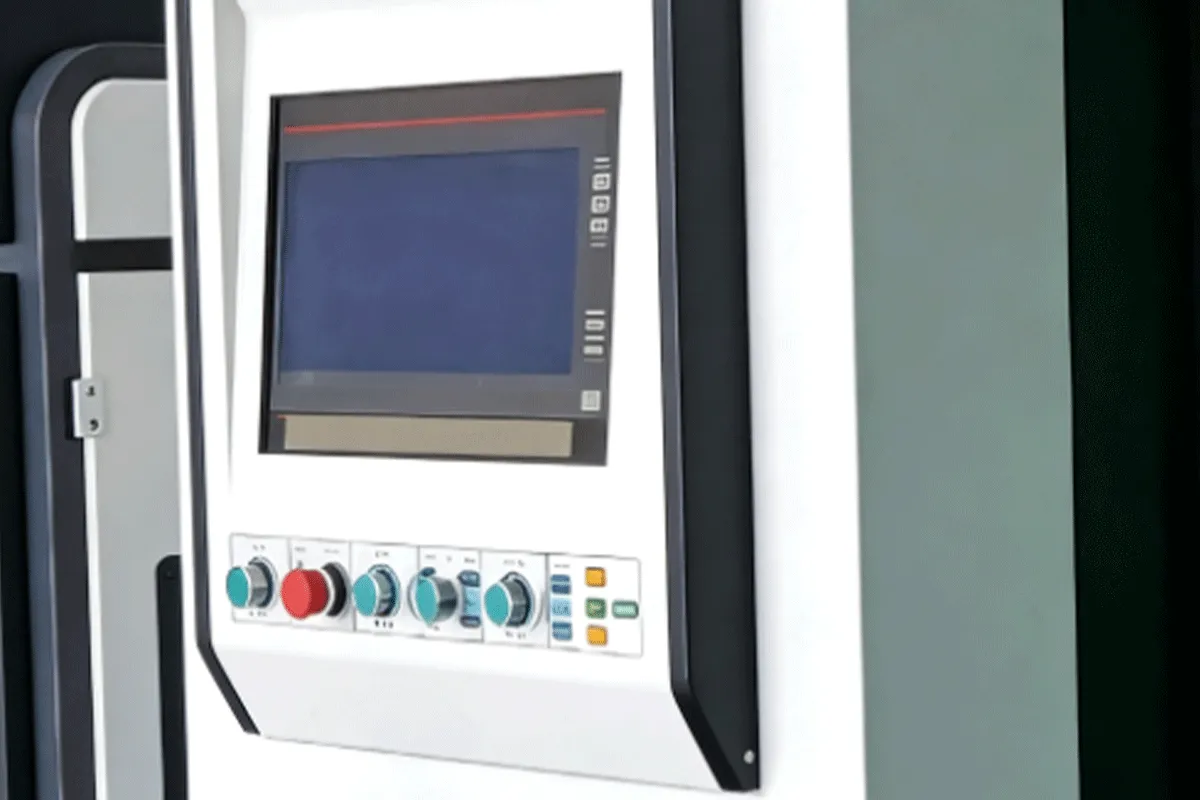

Cypcut cutting software is easy to operate, install, and debug, offering superior performance that significantly improves the precision and flexibility of cutting processes. It boasts a powerful cutting process database and adjustable speed and power settings, enabling greater customization and optimized laser cutting control.
The machine is equipped with over-temperature alarms, flow protection, and water level protection devices to prevent hazards and ensure reliable operation. Comprehensive safety features prevent overheating and flow problems, thereby improving durability and operational efficiency.
