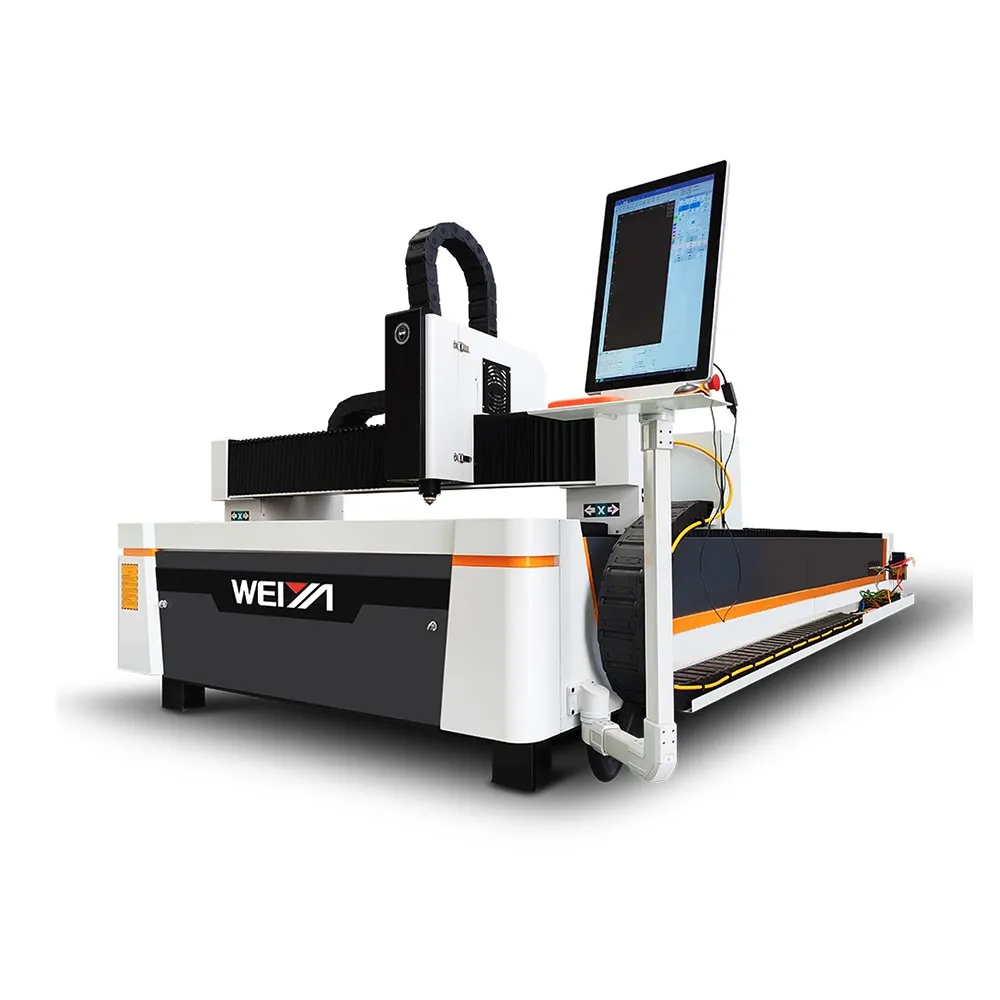

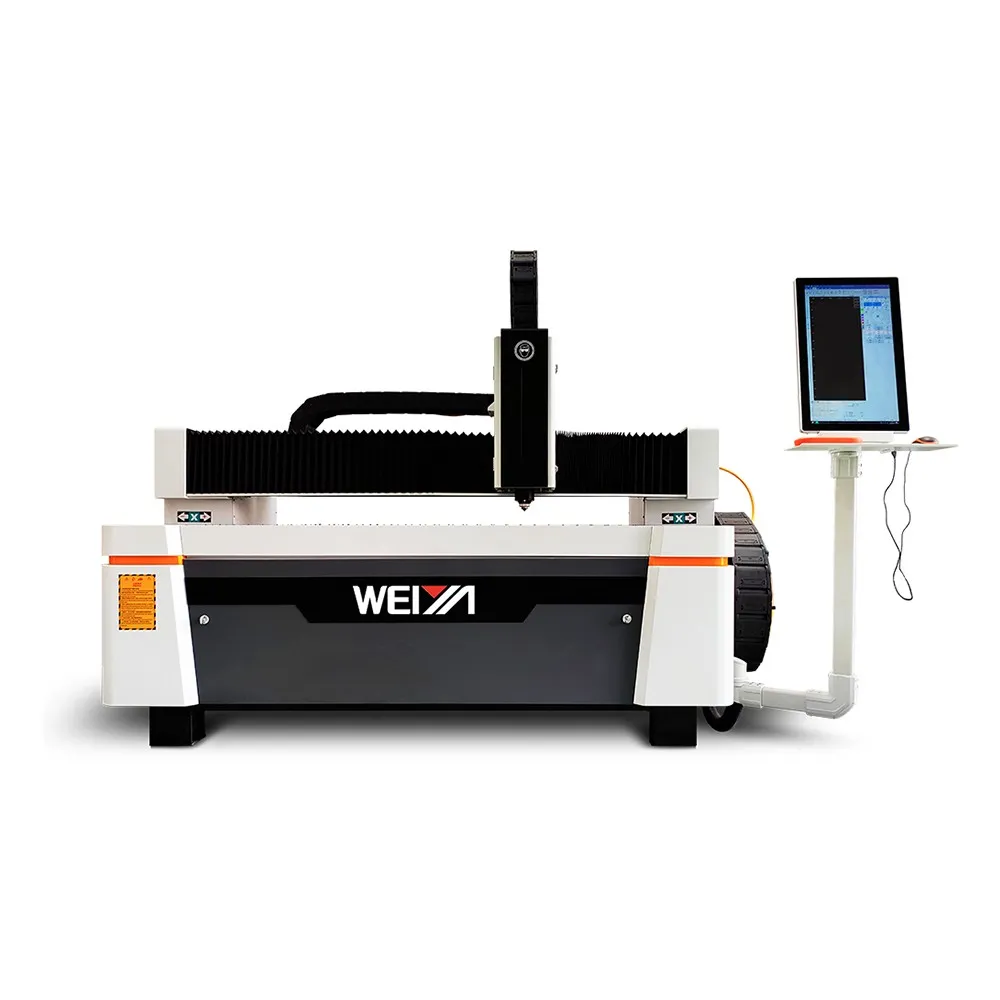

This laser cutting machine is equipped with a high-power laser light source, enabling precise cutting of stainless steel, carbon steel, aluminum, and other metals with smooth, burr-free edges, far exceeding the efficiency of traditional methods. The intuitive CNC system supports the import of CAD files, easily handling complex designs. With its compact structure, energy efficiency, and low maintenance costs, this machine is ideal for small-batch production, customized metal parts, and creative projects.
A high-performance laser unit combined with a stable operating system ensures optimal cutting results.
A comprehensive cooling, lubrication, and dust removal system ensures stable, efficient, and durable operation.
The single worktable design facilitates loading and unloading of sheet metal during cutting, improving processing efficiency.
A large, enclosed housing enhances dust removal and prevents optical contamination.
Automatic height adjustment maintains a constant focal length, ensuring consistent cutting quality.
| WS Open Laser Cutter Technical Parameters | |
| Maximum Machining Range | 1500×3000mm |
| X-axis Travel | 1500mm |
| Y-axis Travel | 3000mm |
| Z-axis Travel | 100MM |
| X/Y-axis Positioning Accuracy | ±0.03mm |
| X/Y-axis Repeatability | ±0.02mm |
| X/Y-axis Maximum Moving Speed | 30m/min |
| Maximum Acceleration | 0.6G |
| Maximum Load Capacity of Working Platform | 750KG |
| Guide Rails | Dinghan |
| X-axis Guide Rail Width | 20MM |
| Y-axis Guide Rail Width | 20MM |
| Rack and Pinion | YYC |
| Gear Reducer | SHIMPO |
| Ball Screw | TBI |
| Electrical Components | CHINT |
| Pneumatic Components | CKD / Aventics (Germany) |
| Lubrication Method | Manual Oil Injection |
| Control System | BCL |
| Servo System | Leadshine Z: 400W X, Y: 750W |
| Compatible Laser Power | 1-3kw |
| Overall Dimensions (Length*Width*Height) | 4480*2100*1460 |
| Machine Weight | 1400kg |

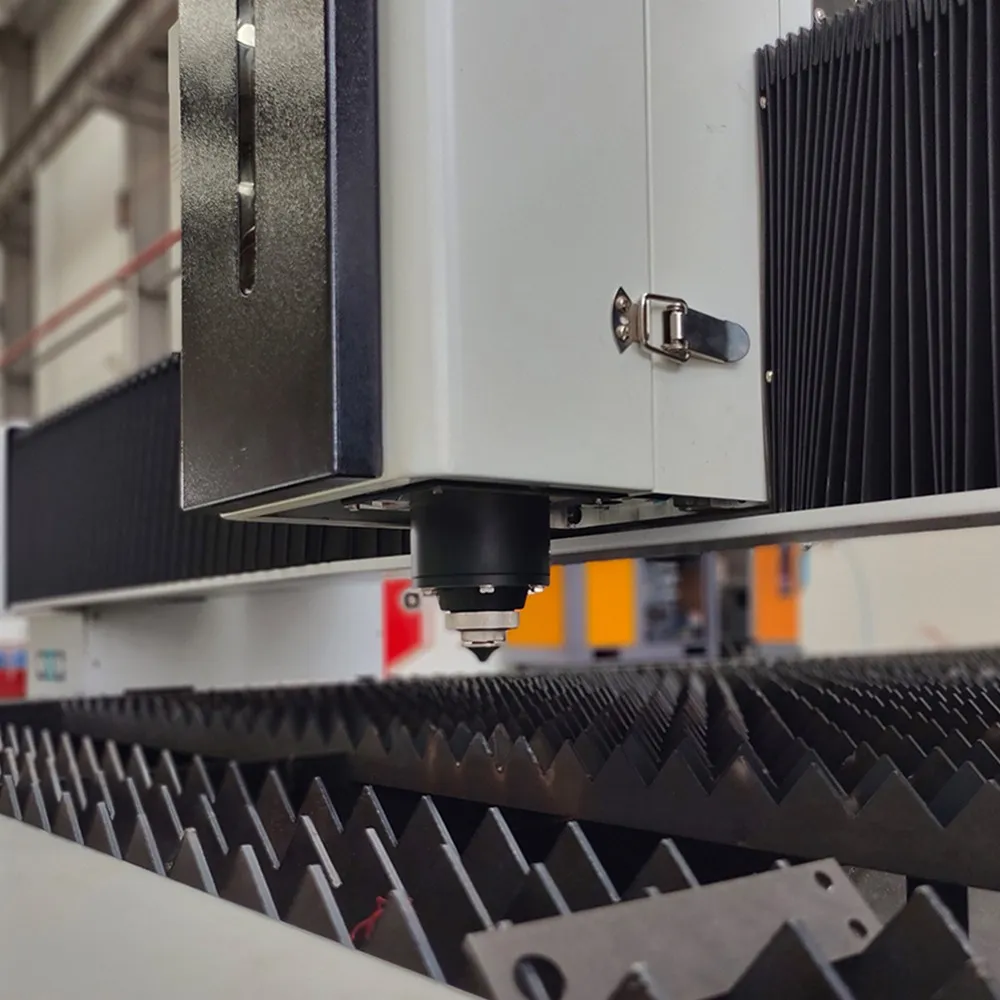

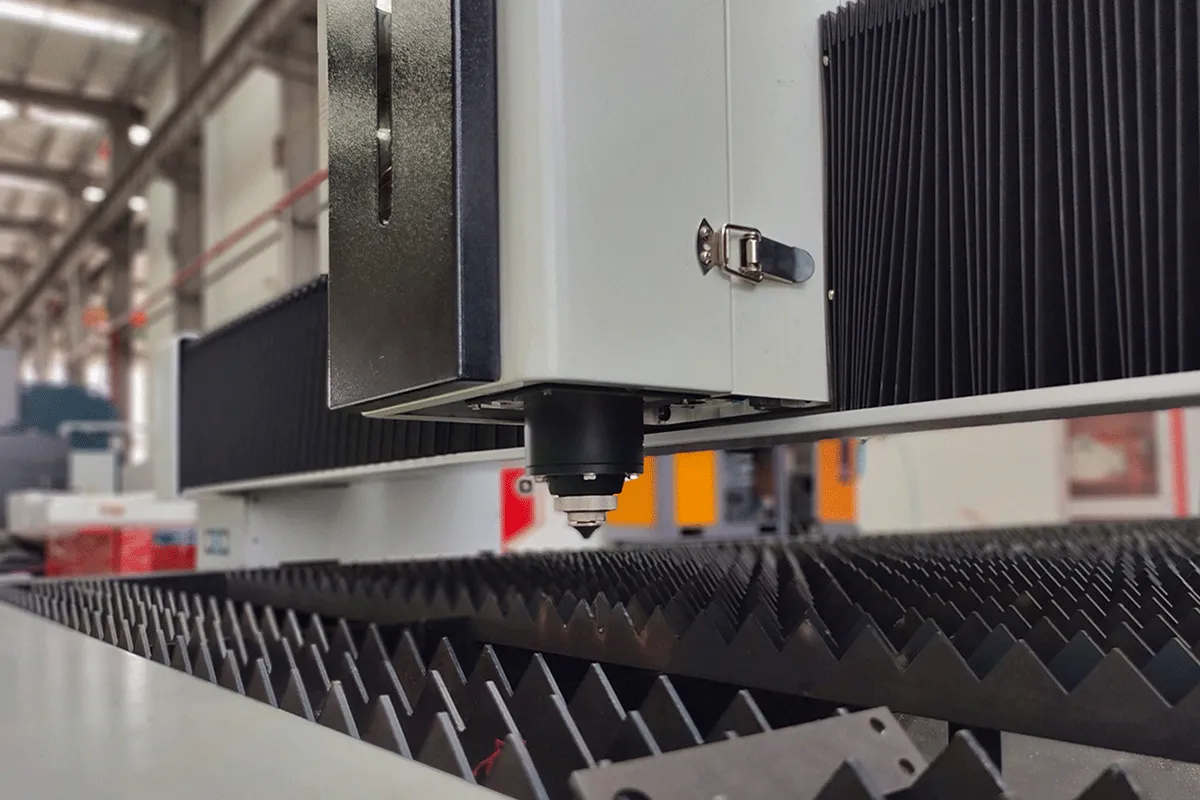

The laser head is made of high quality materials in accordance with advanced technology.Professional laser cutting head，stable and reliable technology，completely sealed inside the laser head，can avoid dust pollution to the optical part.
Imported from Japan,use top brand Yaskawa servo motor，which the maximum speed increased to 6000 r/min reducing the temperature rise and increasing the peak torque by 350%.
It can automatically compensate for assembly errors on the mounting surface, ensuring high-precision processing results even in complex environments. Furthermore, it possesses high-speed processing capabilities, meeting the dual requirements of production efficiency and precision in modern manufacturing.

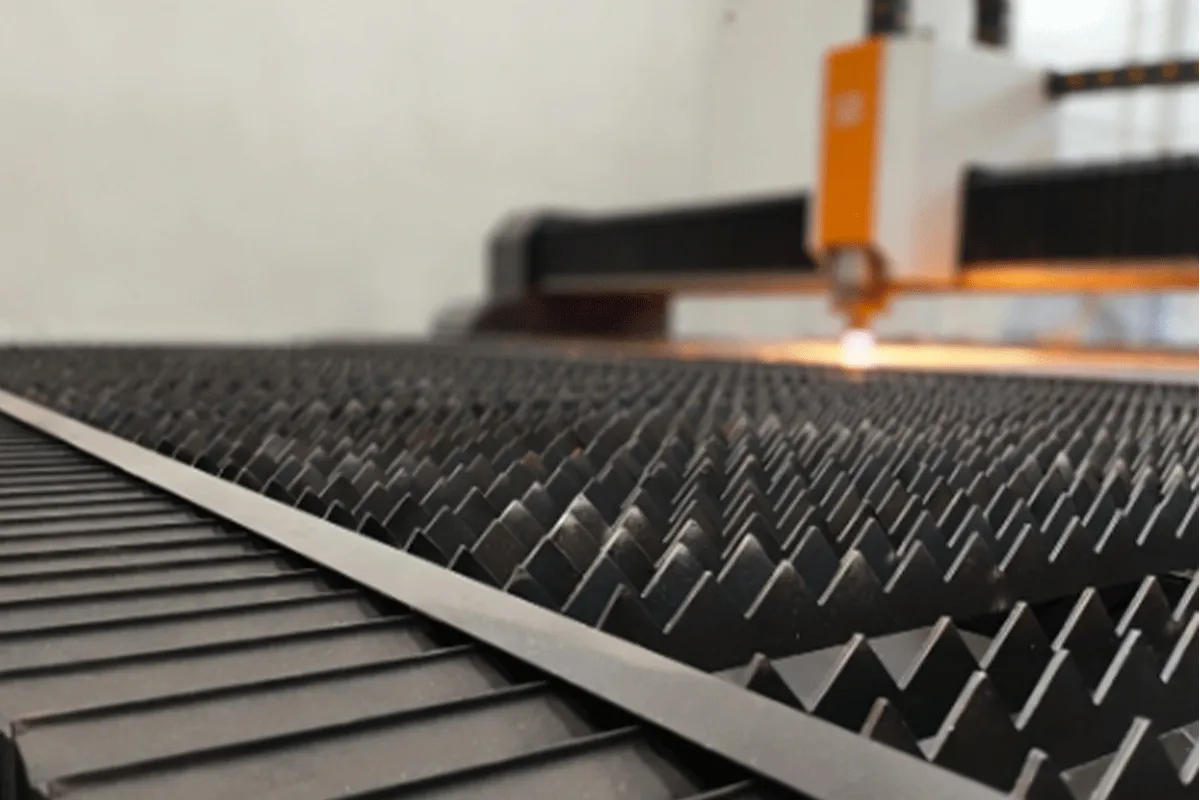

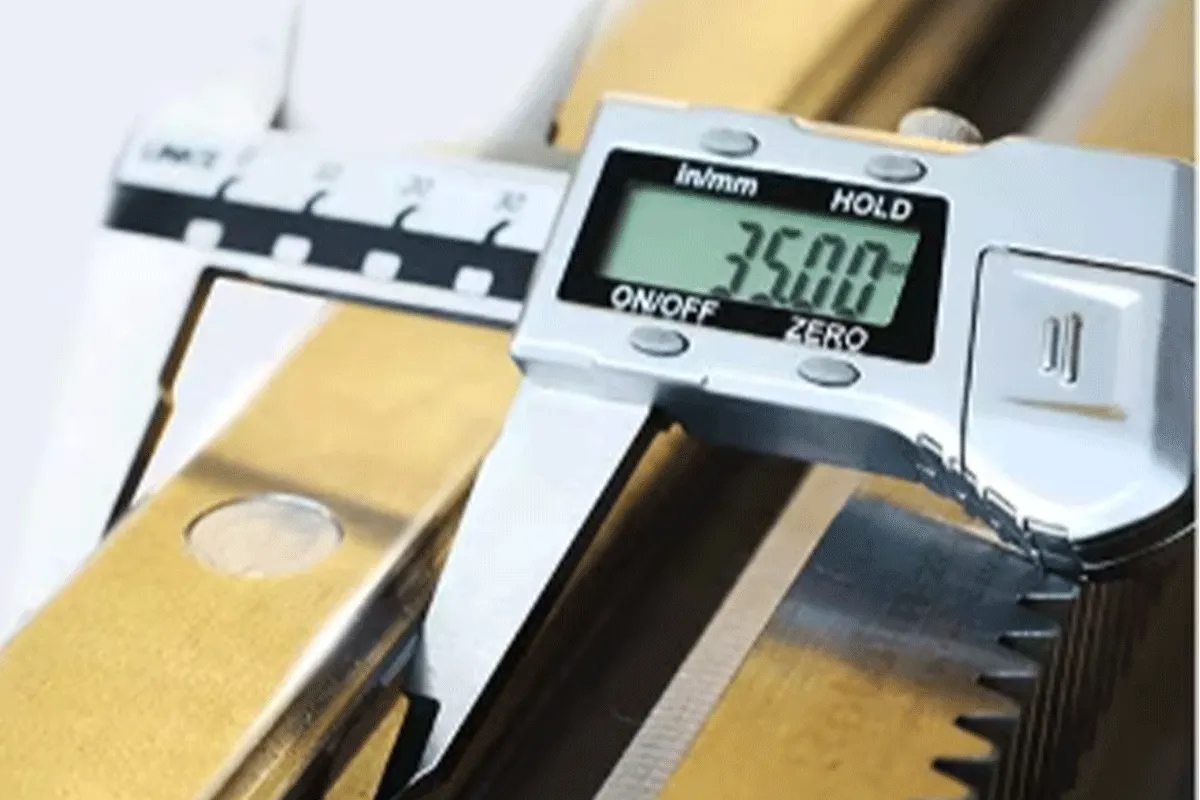

Taiwanese YYC high-precision rack and pinion systems feature a 5th-grade accuracy rating and are specifically designed for laser cutting machines, providing exceptional motion stability. They offer robust and reliable support for hardened and ground helical gears, ensuring efficient and precise cutting performance and extending equipment lifespan.

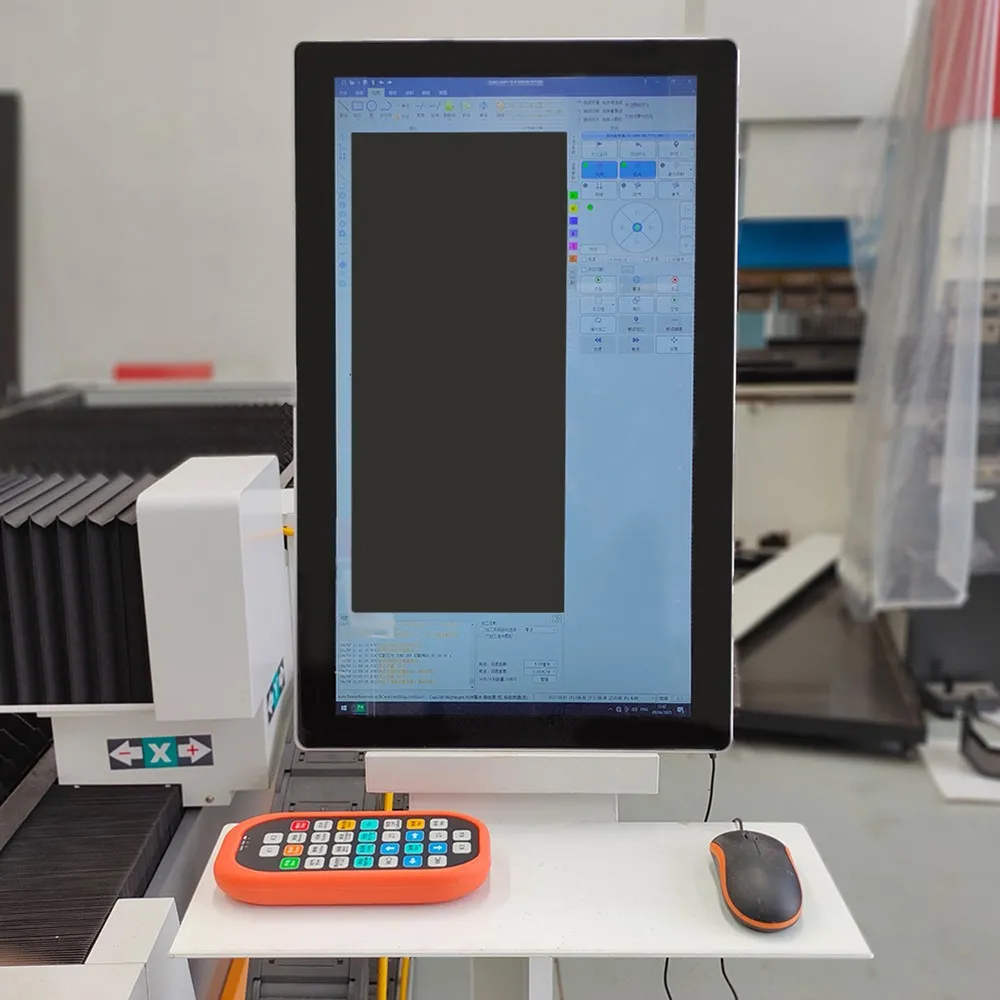

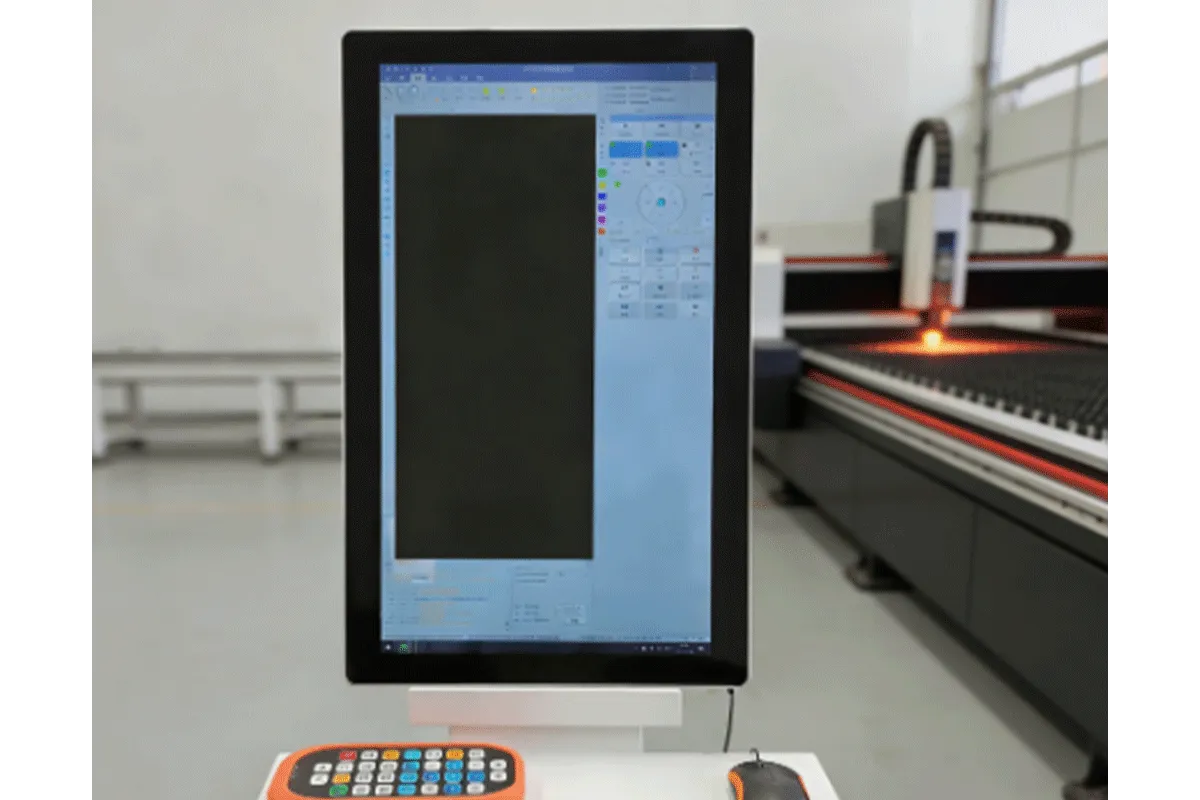

Utilizing an advanced dedicated CNC system, it features functions such as automatic edge finding, automatic layout, automatic focusing, and automatic cutting. It can automatically adjust parameters according to different workpieces, offering simple and intuitive operation, significantly improving production efficiency and cutting accuracy, and reducing human error.

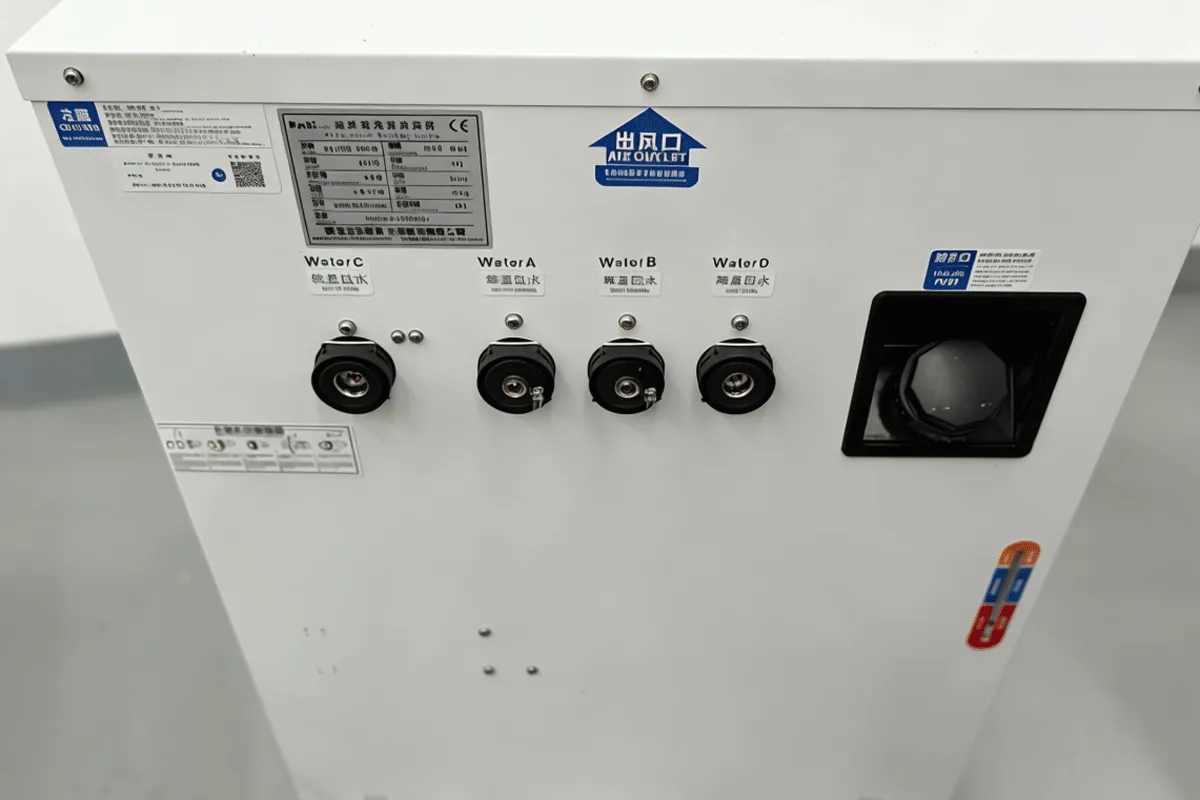

The machine is equipped with over-temperature alarms, flow protection, and water level protection devices to prevent hazards and ensure reliable operation. Comprehensive safety features prevent overheating and flow problems, thereby improving durability and operational efficiency.
