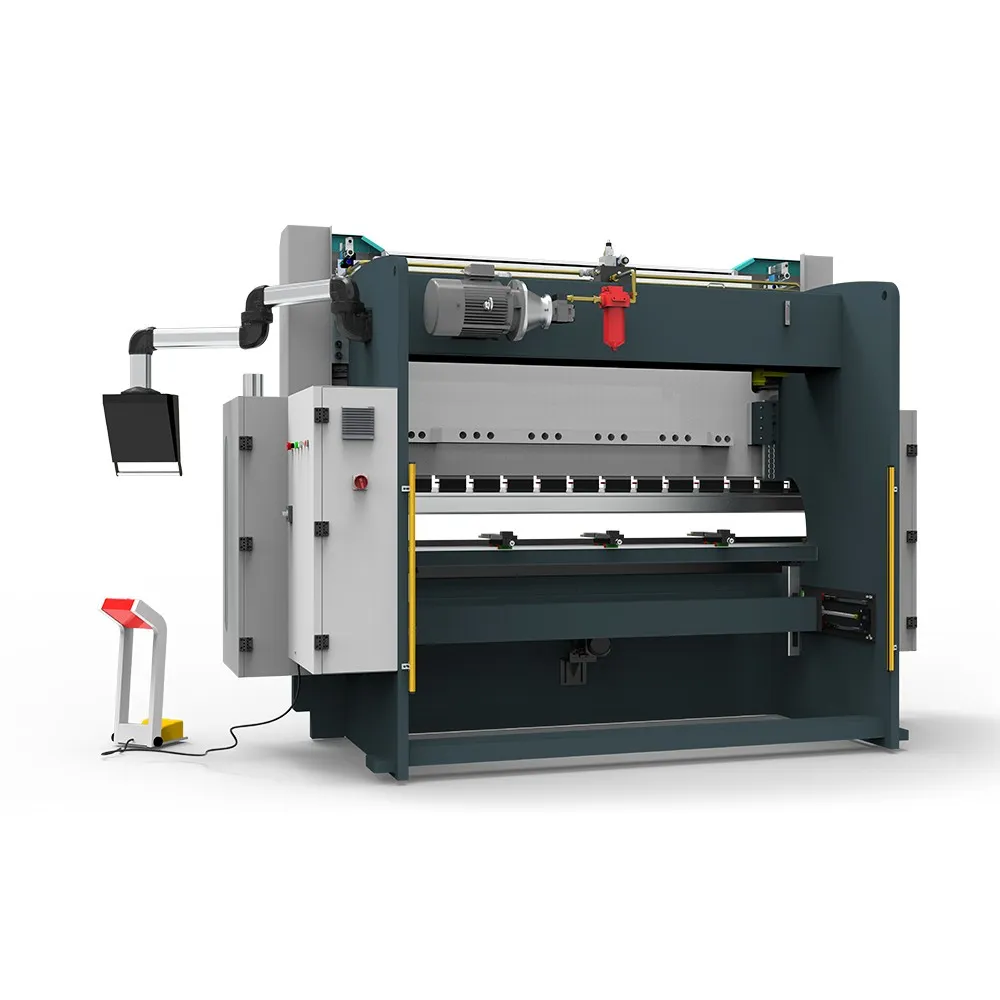

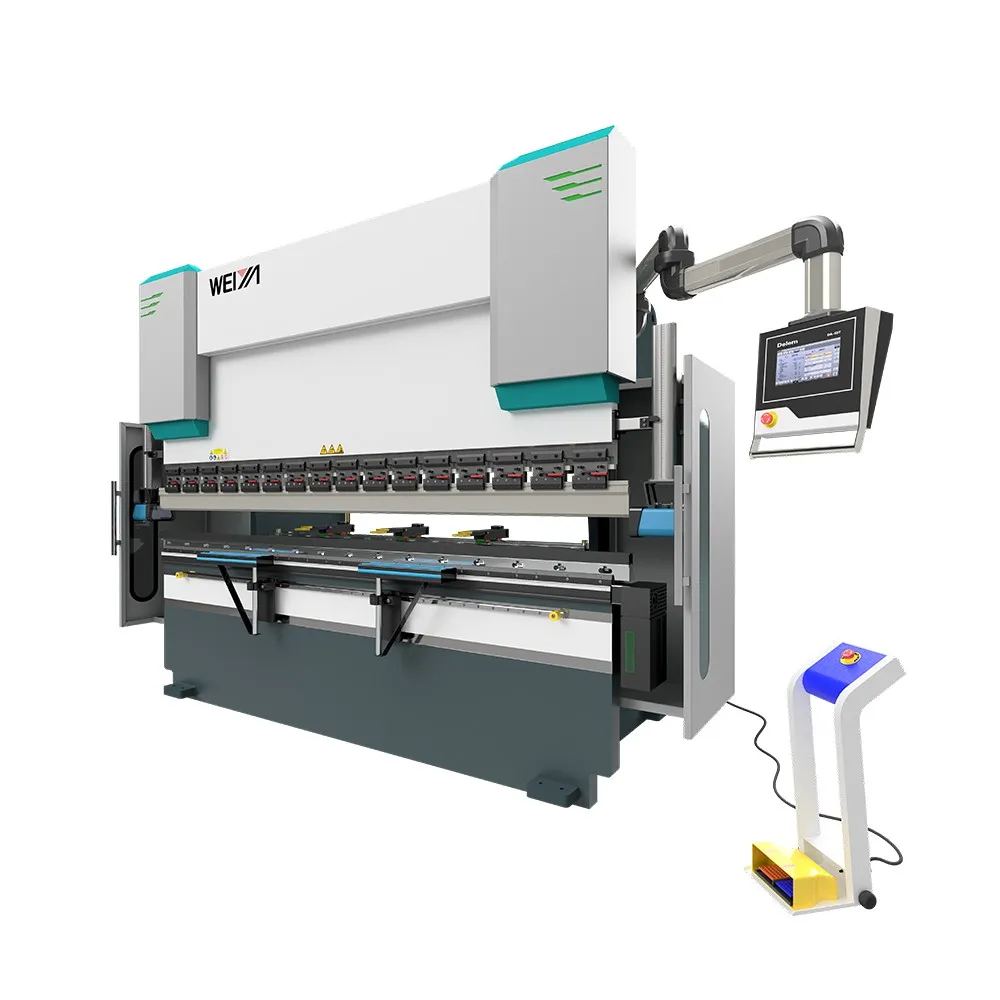

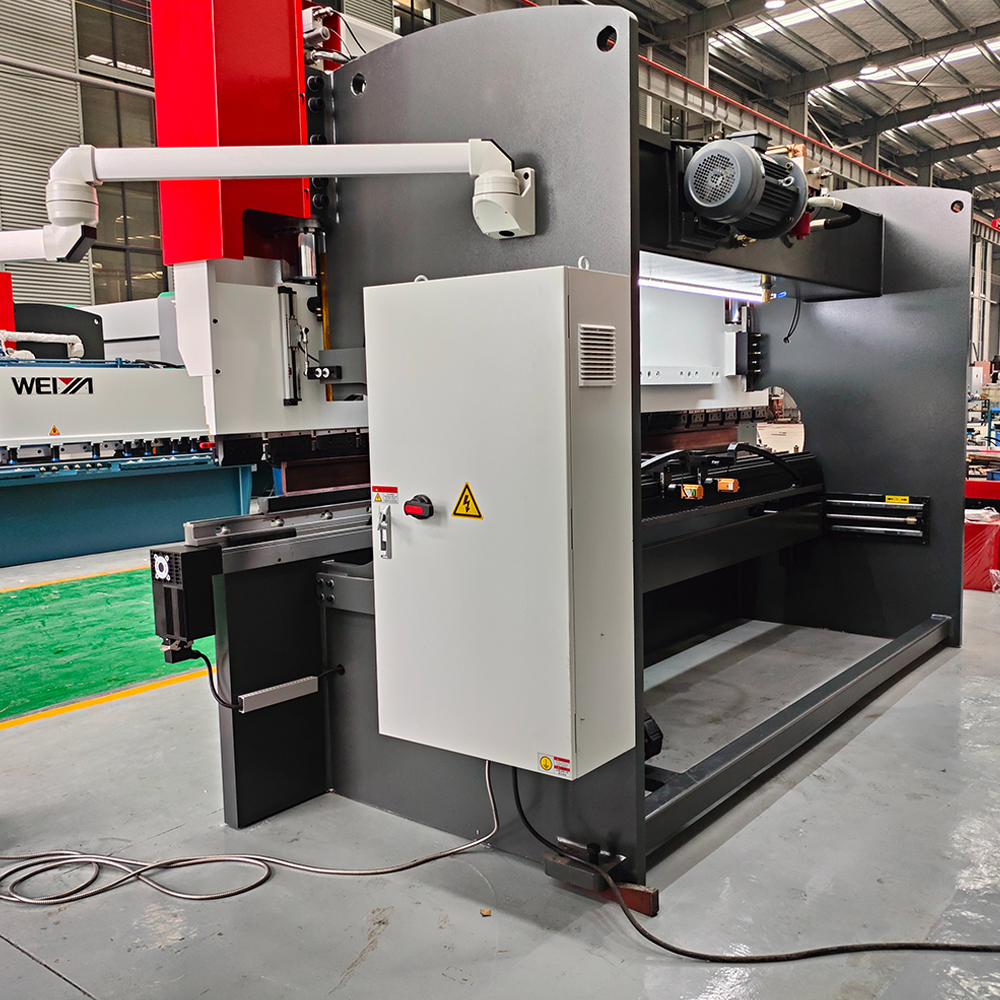

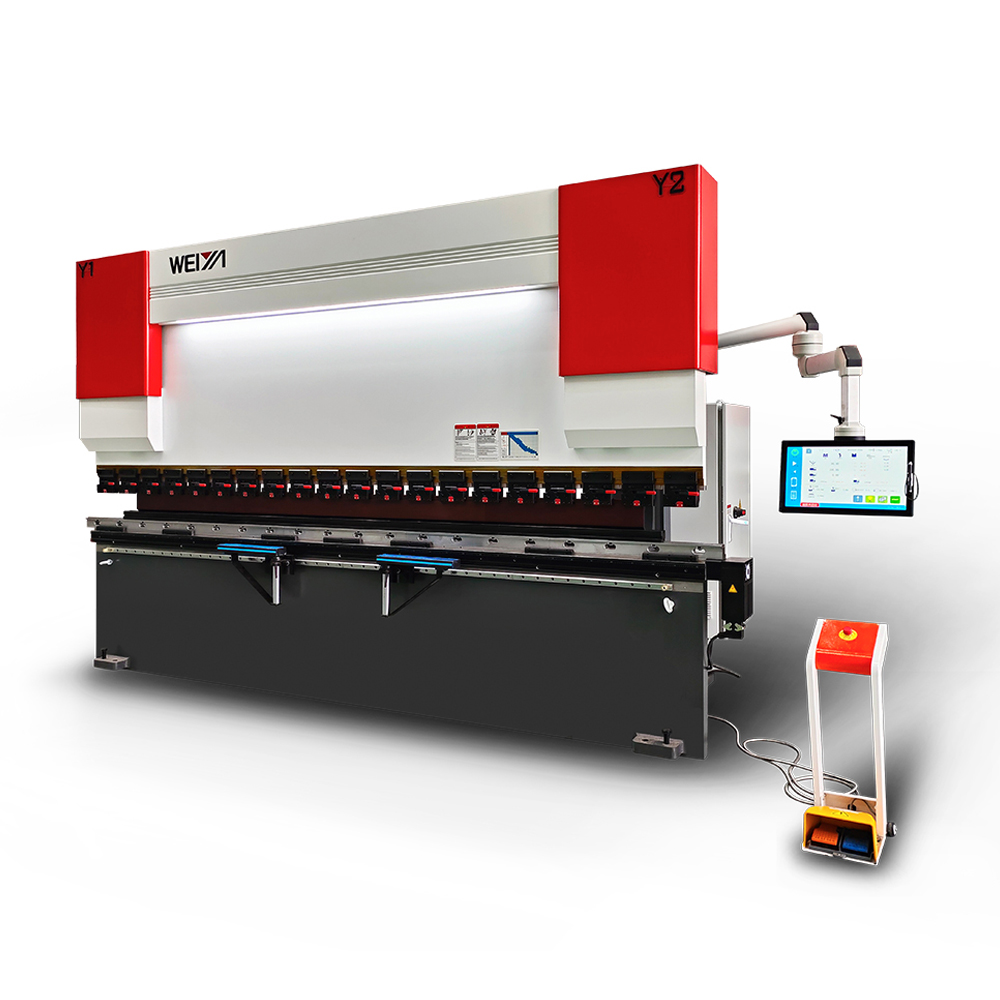

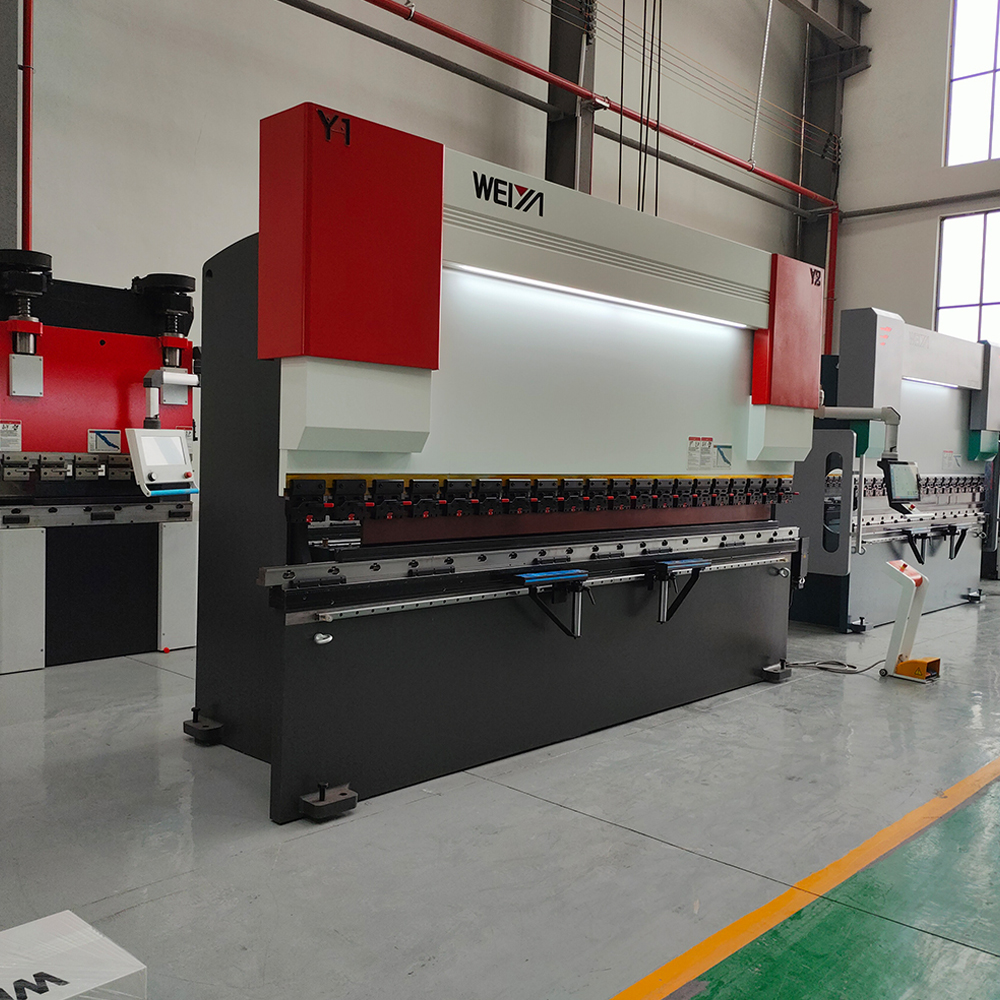

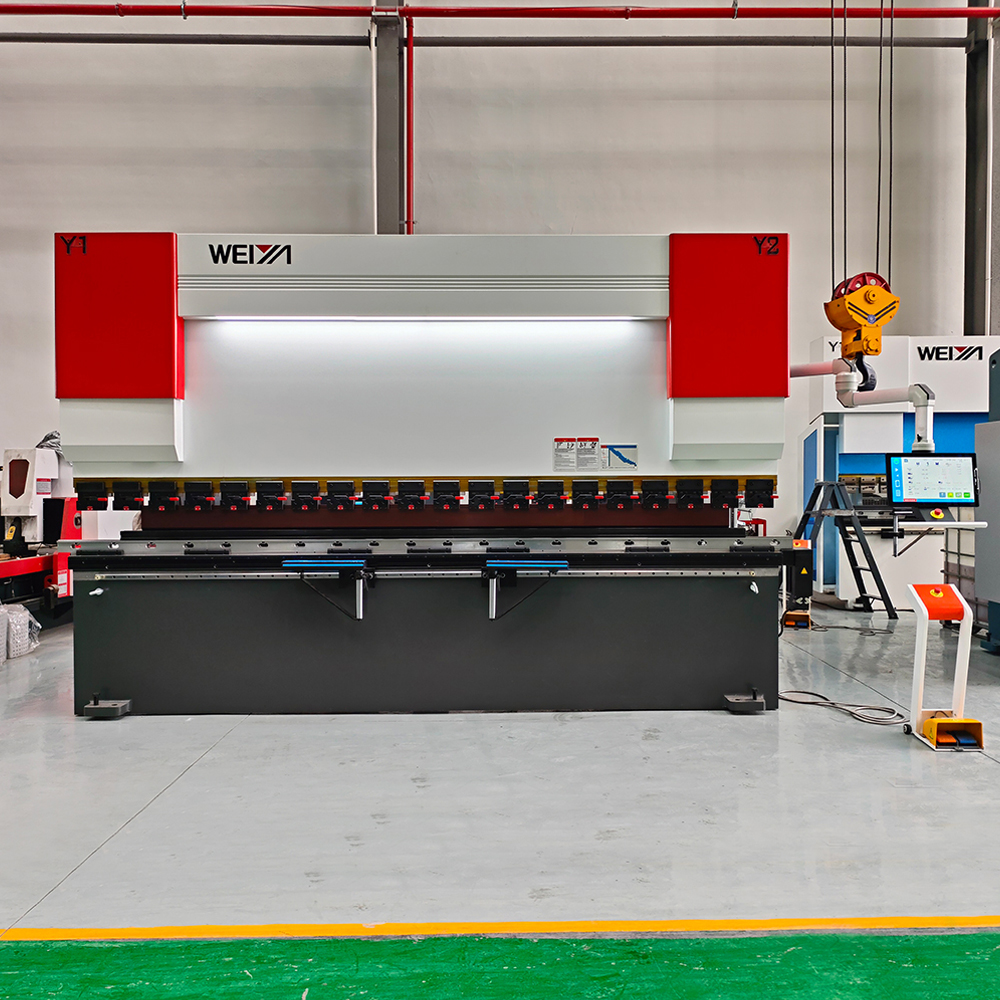

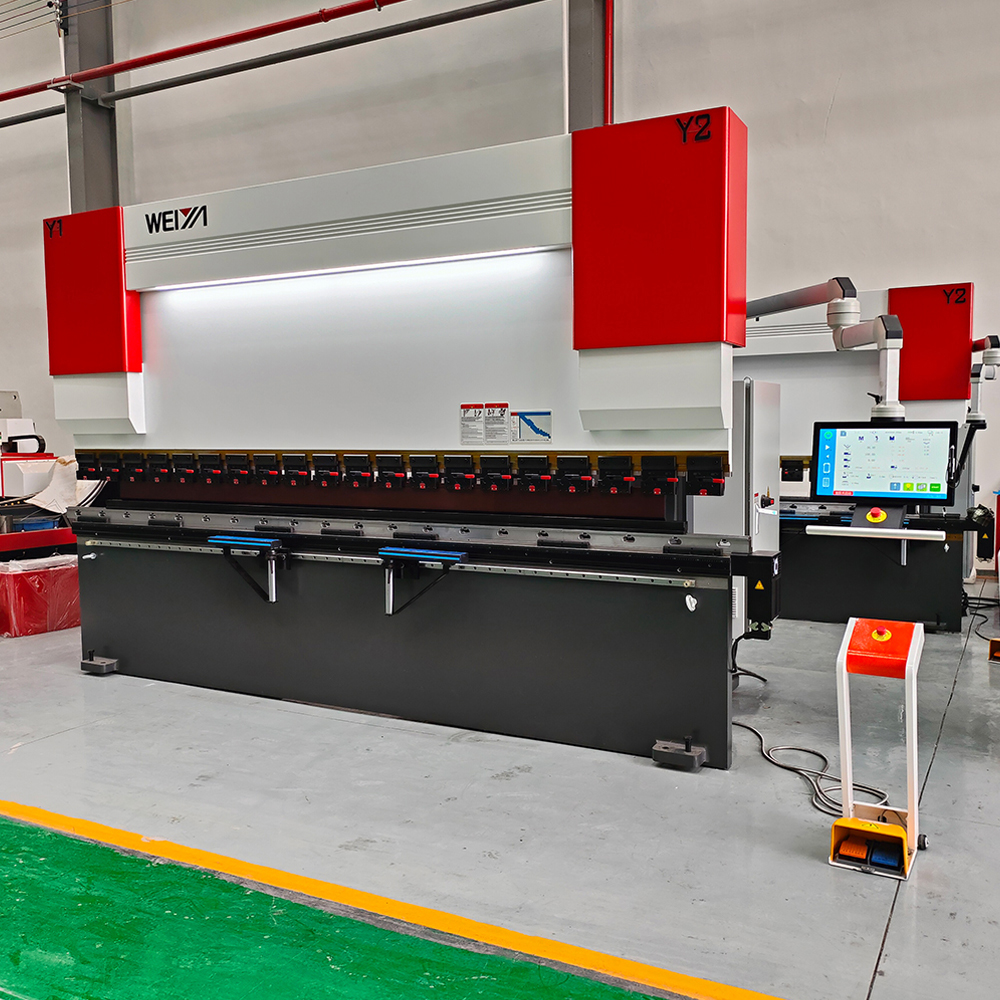

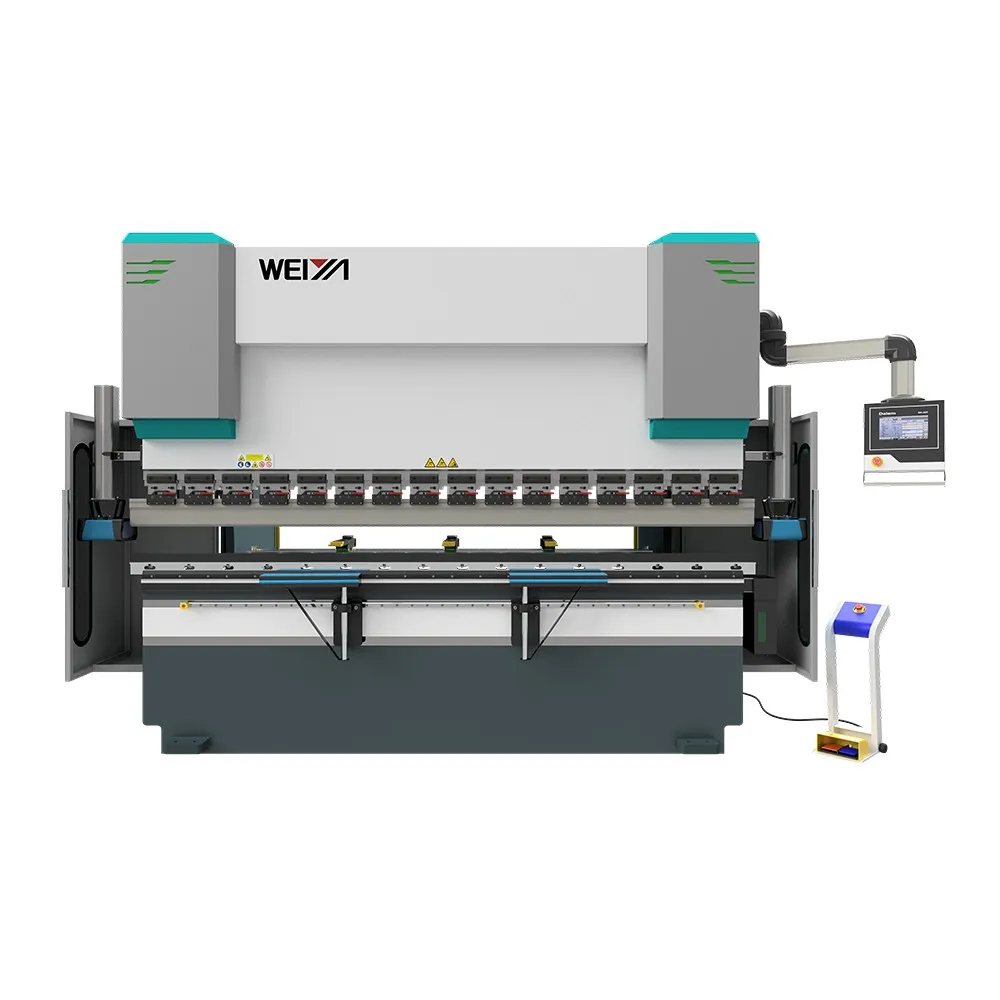

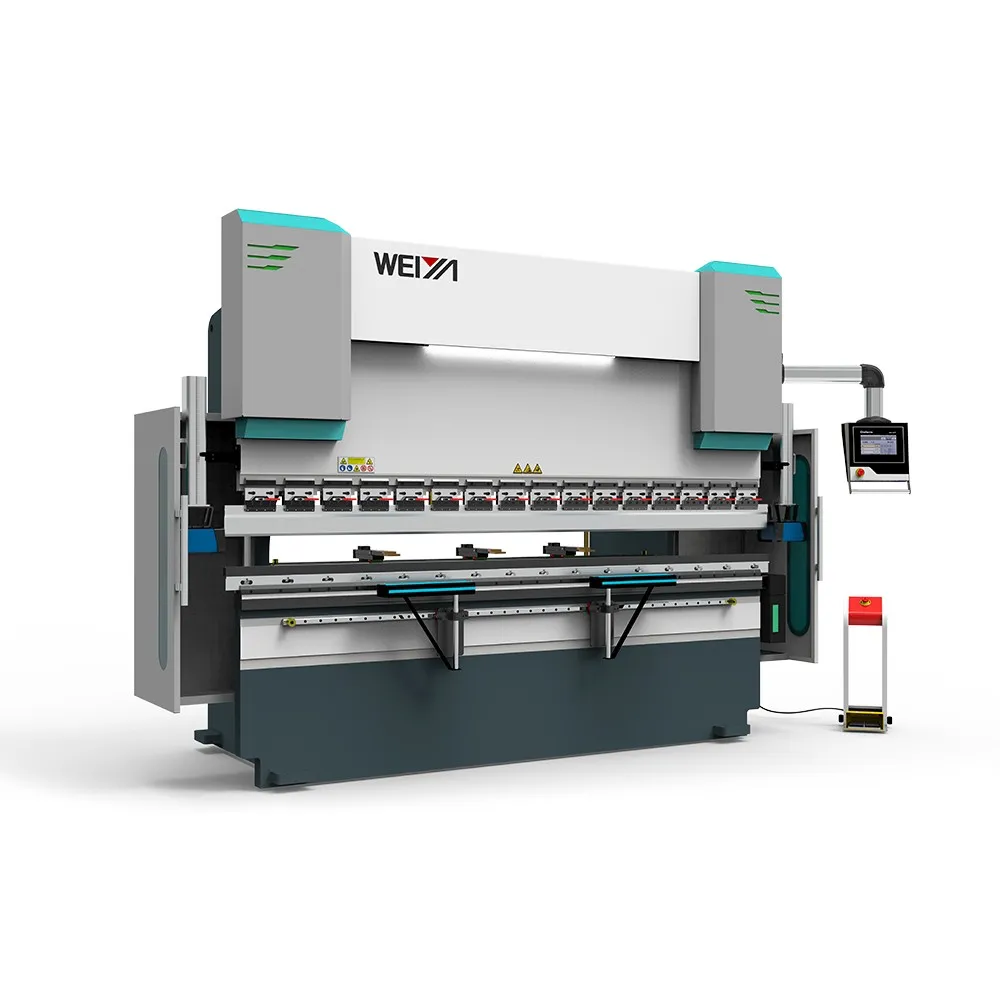

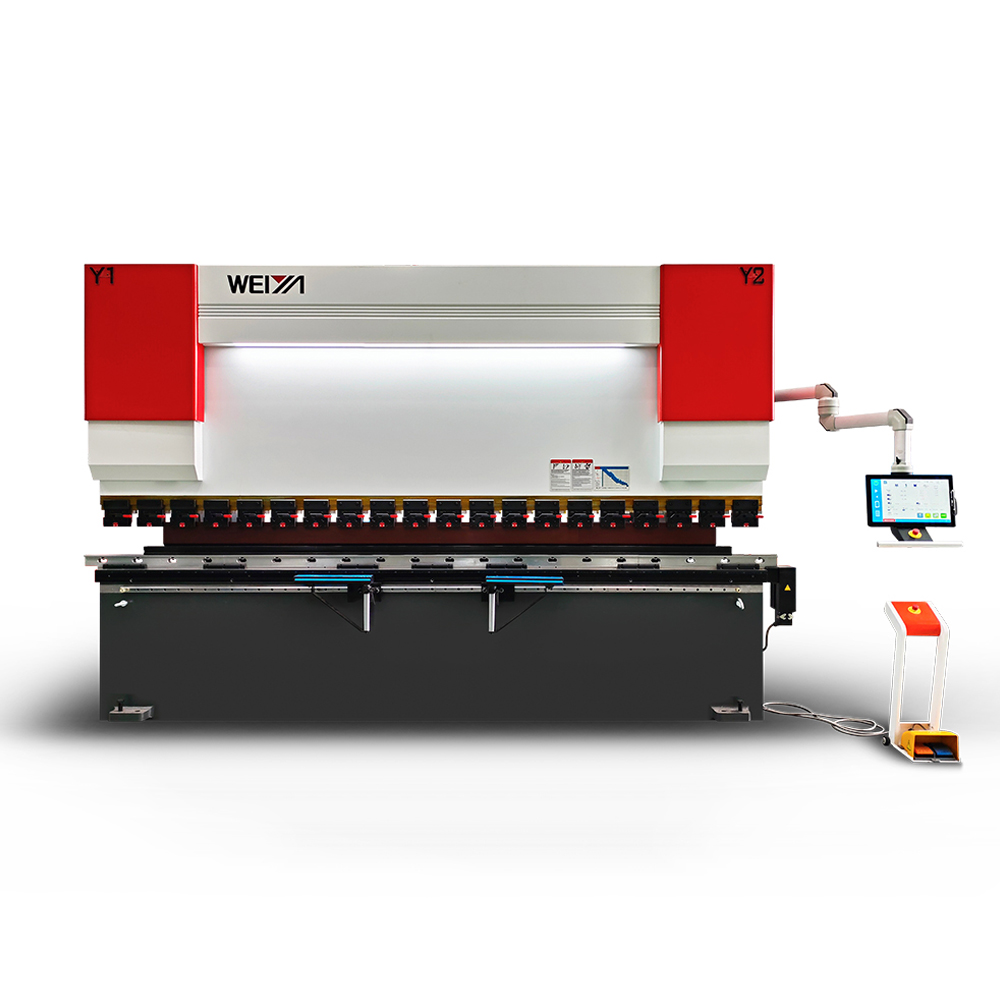

Smart CNC Press Brake 3-4 Axis

Name: Smart CNC Press Brake 3-4 Axis
Brand: Weiya Machinery Technology Co., Ltd

WEIYA smart CNC Press brake series is the most economical business start plan for the people who want to start their business without too high investment. This type all with domestic CNC system and most component are use local brand. It’s both of the high quality and good price. We also support 2 years warranty time and whole life online technical support that could help you solve most problem during more than 10 years lifetime.

Get A Quote

Smart CNC Press Brake 3-4 Axis Features

Most affordable configuration options:We know some customers just bend some simple workpieces or bending just their part time work，also some customers don’t have high budget for purchase a high configuration press brake, so WEIYA develop this plan to meet customers need, cheap price with good quality is possible.
CNC Controller Options: Equipped with MT15 system for intuitive programming, 2D graphic and multiple-step bending automations, we also can change to DELEM,ESA or Cybelec system.
High precision hydraulic system: Y1/Y2 axis synchronization ensures excellent parallelism and consistent angle accuracy.
Backgauge System: Multi-axis CNC-controlled backgauge (X, R, or Z1/Z2) enables complex part positioning with ±0.01 mm accuracy.

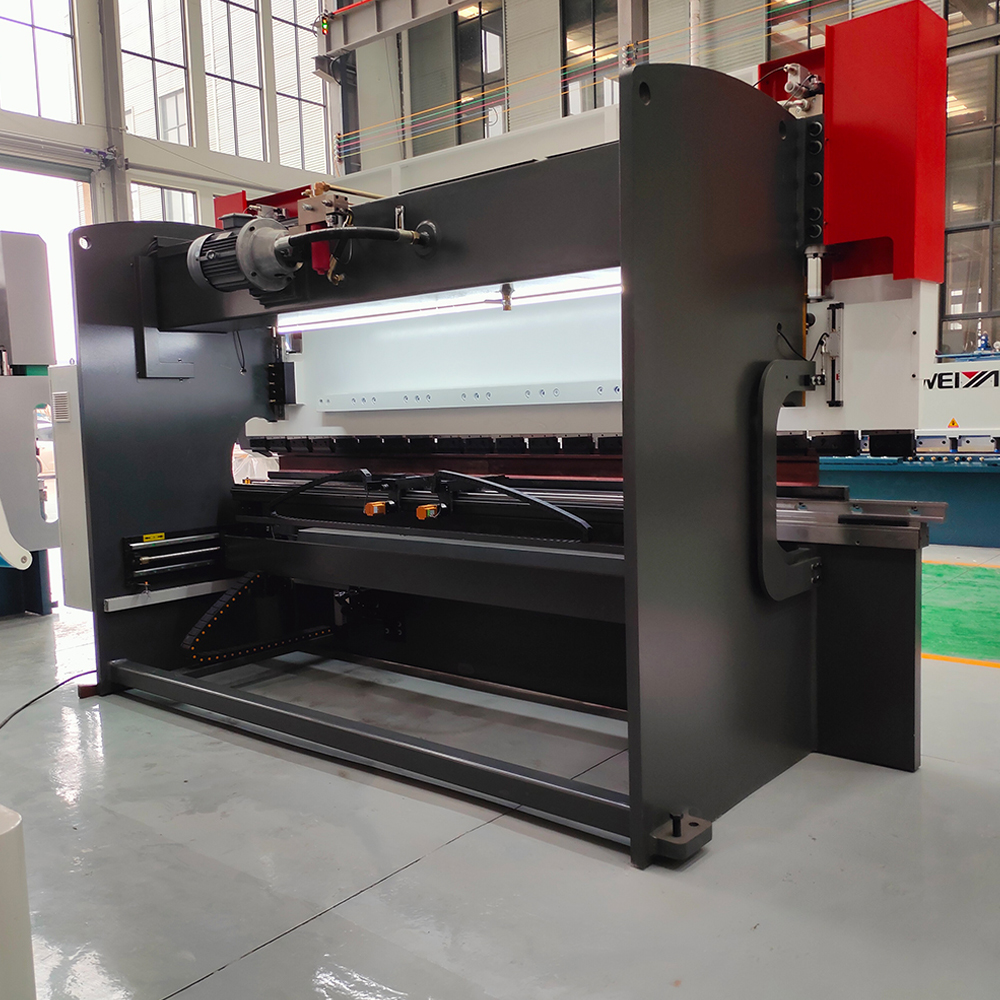

Frame & Ram Structure: One-piece welded steel frame, stress-relieved for rigidity and vibration reduction, ensuring long-term precision.

Products

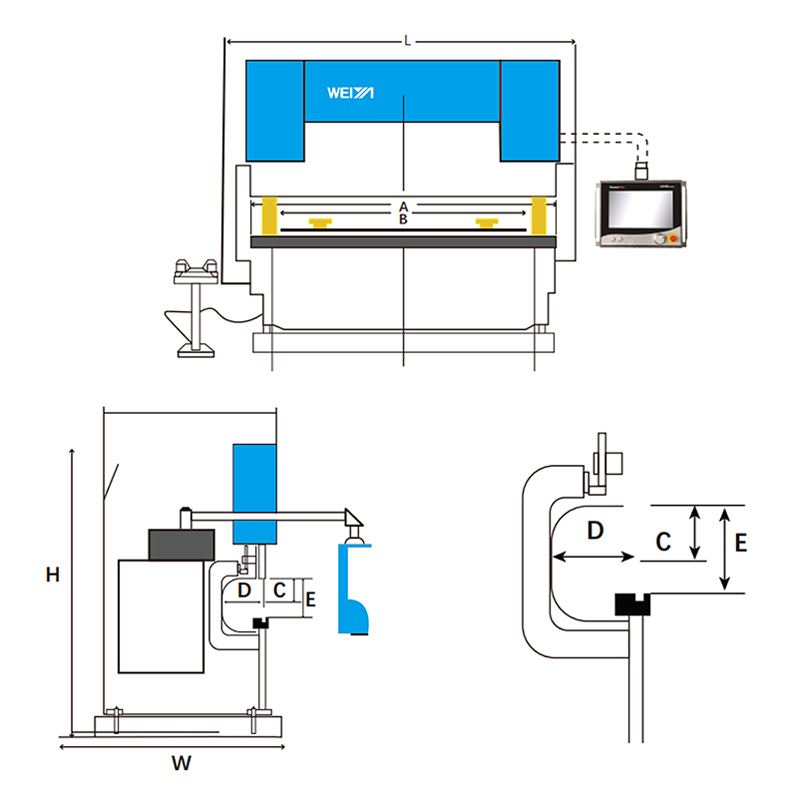

Smart CNC Press Brake 3-4 Axis Technical Specifications

smart cnc press brake 3 4 axis technical specifications

Model	Bending Force	Motor Power	Bending Length(A)	Throat Depth (D)	Daylight(E)	Column Distance(B)	X Axis Stroke	Stroke (C )	Approach speed	Working speed	Return speed	Overall dimension LxWxH
Unit	KN	MM	MM	MM	MM	MM	MM	MM	MM/S	MM/S	MM/S	MM
50T1600	500	4	1600	250	420	1100	450	160	160	15	160	2100x1500x2300
50T2000	500	4	2000	250	420	1500	450	160	180	15	160	2500x1500x2300
50T2500	500	4	2500	250	420	1880	450	160	180	15	160	3000x1500x2300
70T1600	700	5.5	1600	320	440	1200	600	160	160	15	160	2100x1600x2400
70T2500	700	5.5	2500	350	440	1880	600	160	180	15	160	3000x1600x2400
80T2500	800	7.5	2500	350	440	1880	600	160	160	13	160	3000x1800x2450
80T3200	800	7.5	3200	350	440	2550	600	160	160	13	160	3700x1800x2450
110T2000	1100	7.5	2000	400	470	1500	600	200	160	12	160	2800x2000x2750
110T2500	1100	7.5	2500	400	470	1880	600	200	160	12	160	3300x2000x2750
110T3200	1100	7.5	3200	400	470	2550	600	200	170	12	160	4000x2000x2750
110T4000	1100	7.5	4000	400	470	3150	600	200	170	12	160	4800x2000x2750
110T6000	1100	7.5	6000	400	470	4800	600	200	170	12	160	6800x2200x2900
130T2500	1300	7.5	2500	400	470	1880	600	200	160	12	160	3300x2000x2750
130T3200	1300	7.5	3200	400	470	2550	600	200	180	12	160	4000x2000x2750
130T4000	1300	7.5	4000	400	470	3150	600	200	180	12	160	4800x2000x2750
130T6000	1300	7.5	6000	400	470	4800	600	200	180	12	160	6800x2200x2900
170T2500	1700	11	2500	400	470	1880	600	200	150	9.5	120	3300x2000x2750
170T3200	1700	11	3200	400	470	2550	600	200	160	9.5	120	4000x2000x2750
170T4000	1700	11	4000	400	470	3150	600	200	160	9.5	120	4800x2000x2750
170T6000	1700	11	6000	400	470	4800	600	200	160	9.5	120	6800x2200x3000
200T2500	2000	15	2500	400	470	1880	600	200	150	10	120	3300x2000x2750
200T3200	2000	15	3200	400	470	2550	600	200	160	10	120	4000x2000x2750
200T4000	2000	15	4000	400	470	3150	600	200	160	10	120	4800x2000x2750
200T6000	2000	15	6000	400	470	4800	600	200	160	10	120	6800x2200x3100
250T2500	2500	18.5	2500	400	520	1880	600	250	130	8.5	110	3300x2200x3100
250T3200	2500	18.5	3200	400	520	2550	600	250	130	8.5	110	4000x2200x3100
250T4000	2500	18.5	4000	400	520	3150	600	250	140	8.5	110	4800x2200x3100
250T6000	2500	18.5	6000	400	520	4800	600	250	140	8.5	110	6800x2400x3400
300T2500	3000	22	2500	400	520	1880	600	250	110	7	105	3300x2200x3200
300T3200	3000	22	3200	400	460	2550	600	250	110	7	105	4000x2200x3200
300T4000	3000	22	4000	400	460	3150	600	250	120	7	105	4800x2200x3200
300T5000	3000	22	5000	500	460	4000	600	250	120	7	105	5800x2200x3200
300T6000	3000	22	6000	500	460	4800	600	250	120	7	105	6800x2400x3400
400T3200	4000	30	3200	500	490	2550	600	300	90	10	90	4000x2400x3500
400T4000	4000	30	4000	500	490	3150	600	300	90	10	90	4800x2400x3500
400T6000	4000	30	6000	500	490	4800	600	300	90	10	90	6800x2500x3600
500T3200	5000	37	3200	500	510	2550	600	300	100	8.4	74	4000x2500x3700
500T4000	5000	37	4000	500	510	3150	600	300	100	8.4	74	4800x2500x3700
500T6000	5000	37	6000	500	510	4800	600	300	100	8.4	74	6800x2600x3800
500T8000	5000	37	8000	500	510	6200	600	300	100	8.4	74	9000x2800x4000
600T4000	6000	45	4000	550	570	3150	600	350	100	8.5	80	4800x2800x4000
600T6000	6000	45	6000	550	570	4800	600	350	100	8.5	80	6800x2800x4000
600T8000	6000	45	8000	550	570	6200	600	350	100	8.5	80	8800x3000x4200
800T4000	8000	55	4000	600	630	3150	600	400	100	8	90	5000x3600x4600
800T6000	8000	55	6000	600	630	4800	600	400	100	8	90	7000x3800x4800
800T8000	8000	55	8000	600	630	6200	600	400	100	8	90	9000x3800x4800
800T10000	8000	55	10000	600	630	7800	600	400	100	8	90	11000x4000x5000

Smart CNC Press Brake 3-4 Axis Component

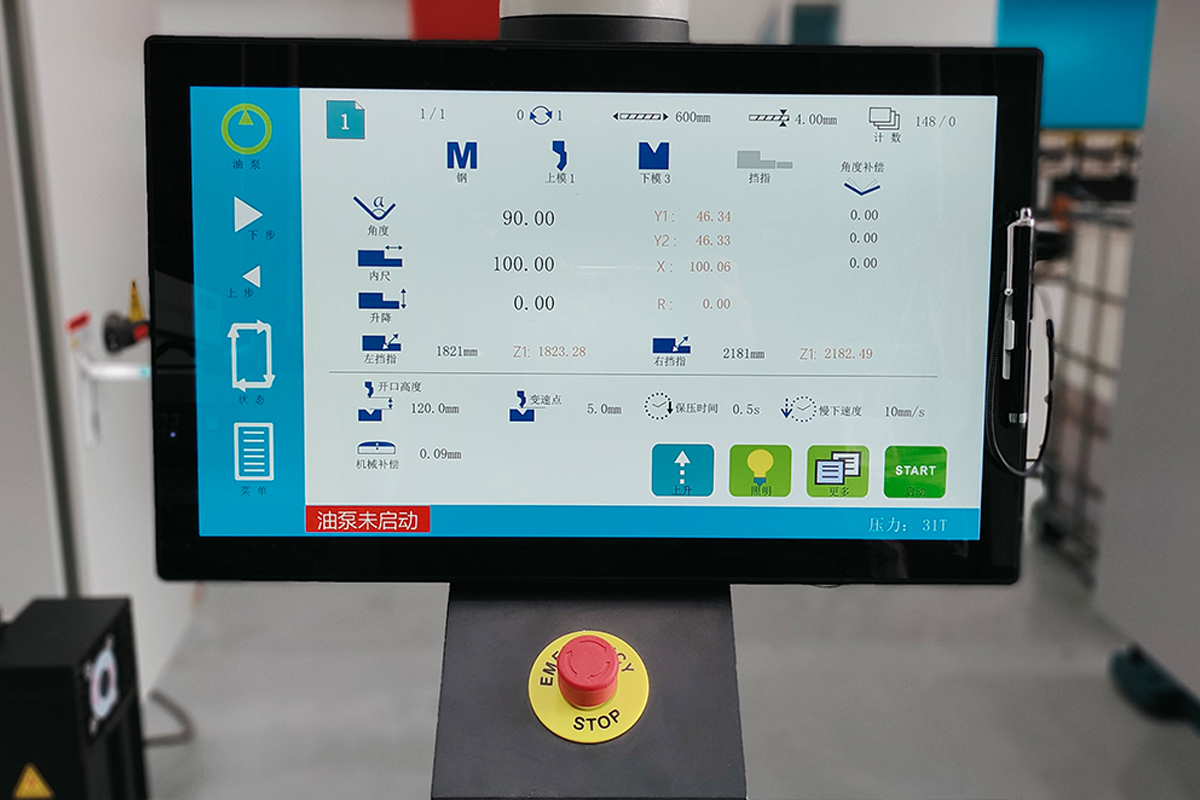

CNC System

Thanks to the technical develop now Chinese CNC system also have good function but with very affordable price. The system supports multi-language, with a touch screen to program the parameters of the workpiece directly into the system, and supports 2D graphic display.

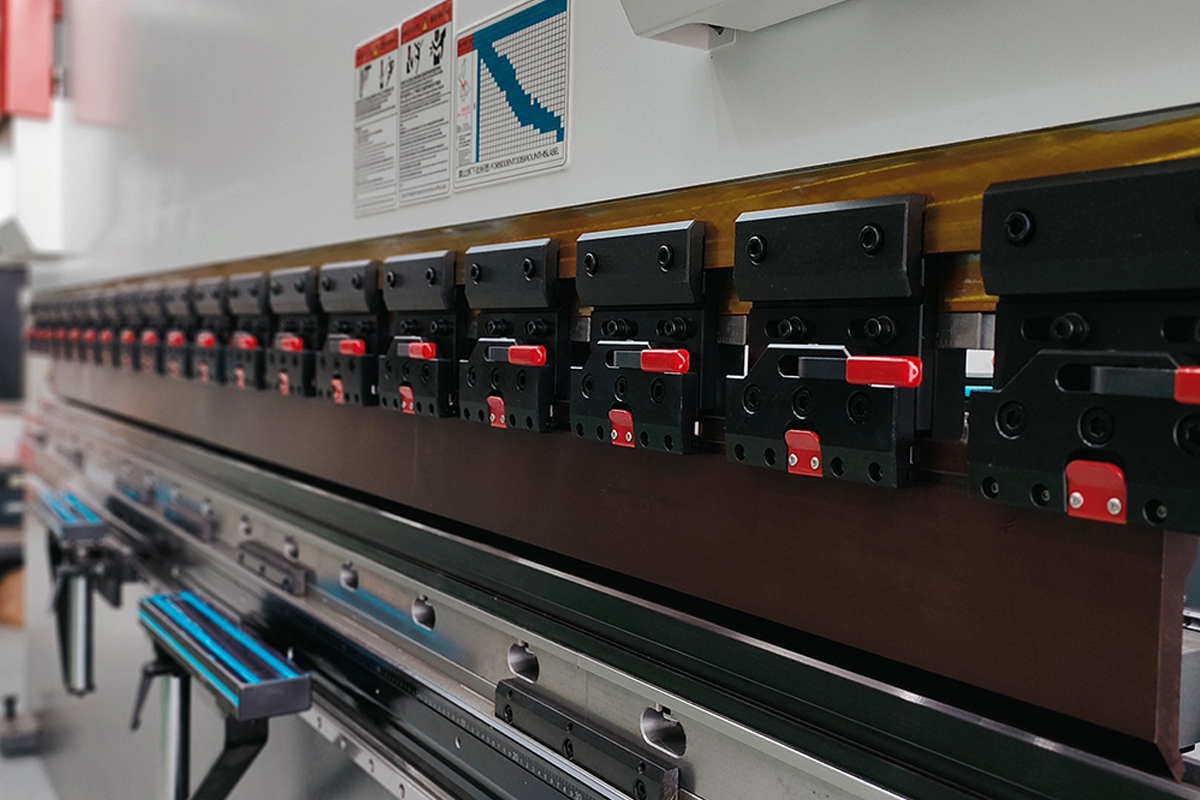

Fast Clamping

During the bending processing, people usually want to change different tooling to meet different bending requirement, the fast clamping will most reduce the time of change that mean it can save your work time so that save your money as well.

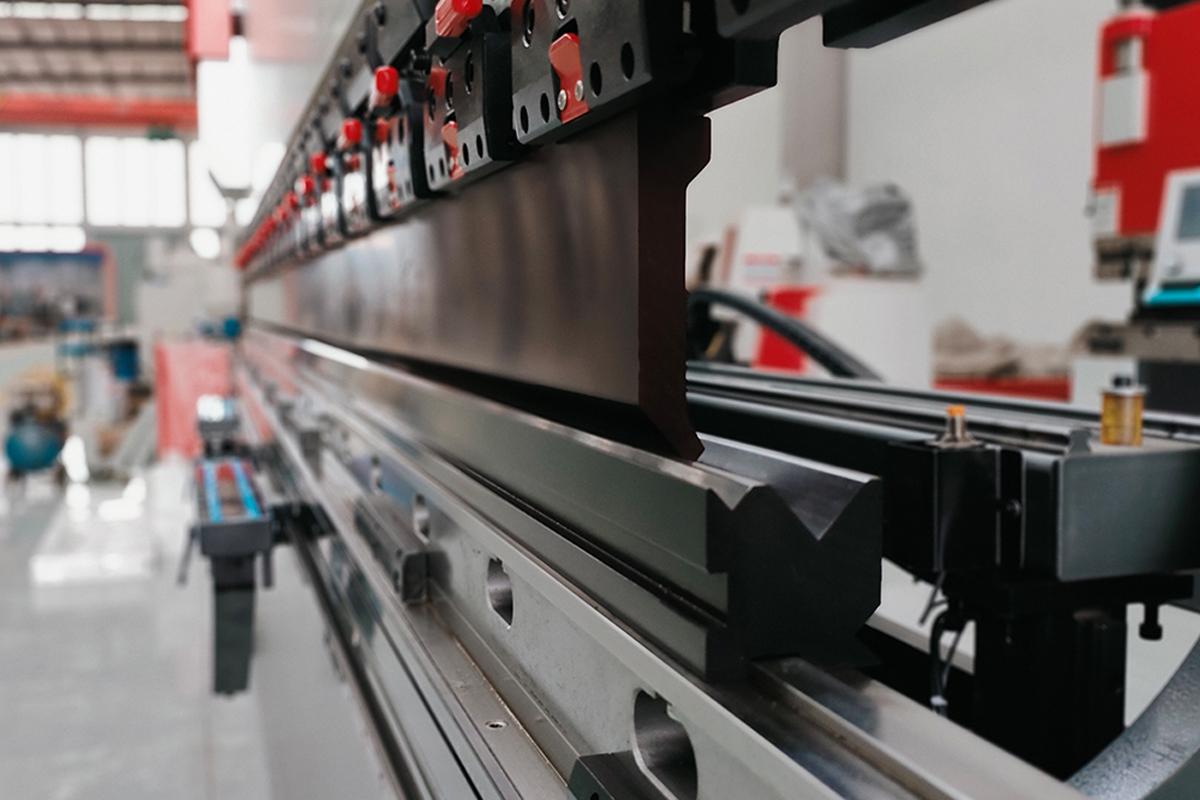

Standard Tooling

Our standard Lower Die is Self-Centering Dies, ensures the punch is always centered over the V-Die opening-no manual adjustment needed.

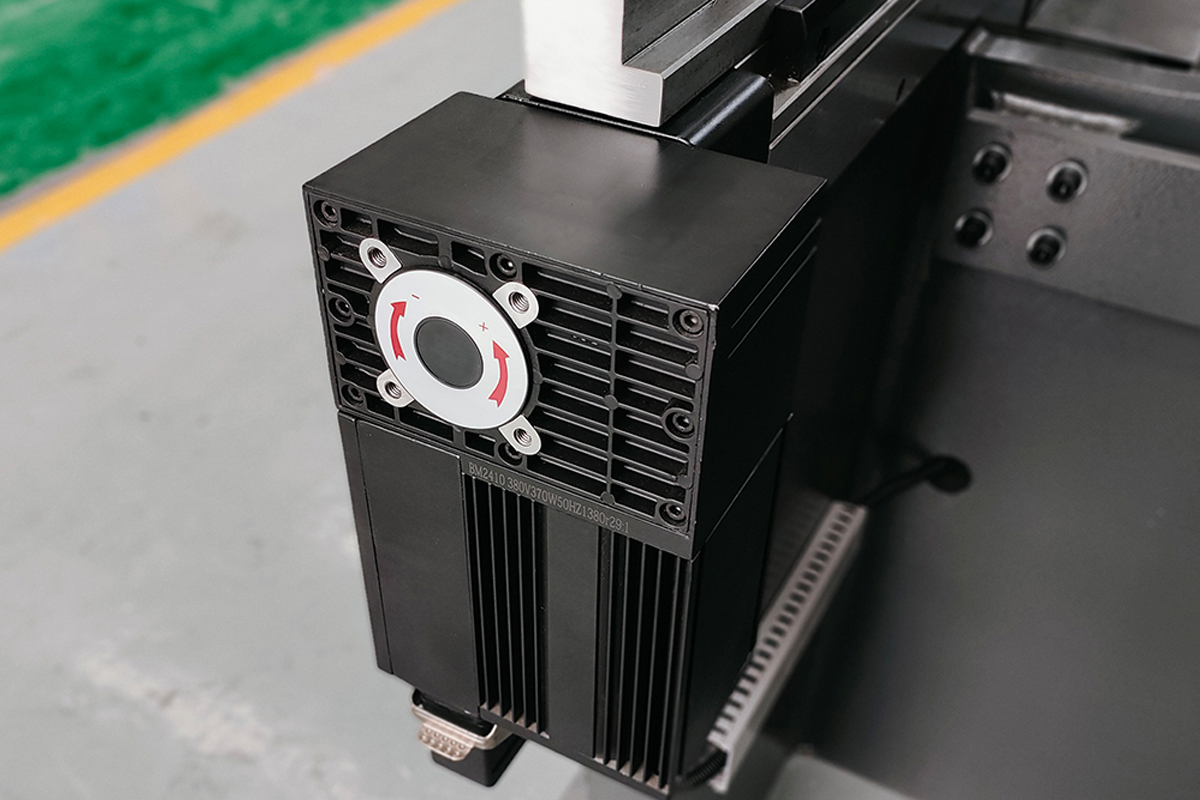

CNC Automatic Crowning System

You must need a crowing system if you concern the consistency of the angle of the plate after bending, especially if the length of the plate exceeds 2000 mm or the thickness exceeds 5mm.

Electric Cabinet

The electric component is the small part of the machine, but it’s kindly important too, we all use Schneider electric component to keep the machine running without small issues.
