High Precision & Adaptive Crowning System

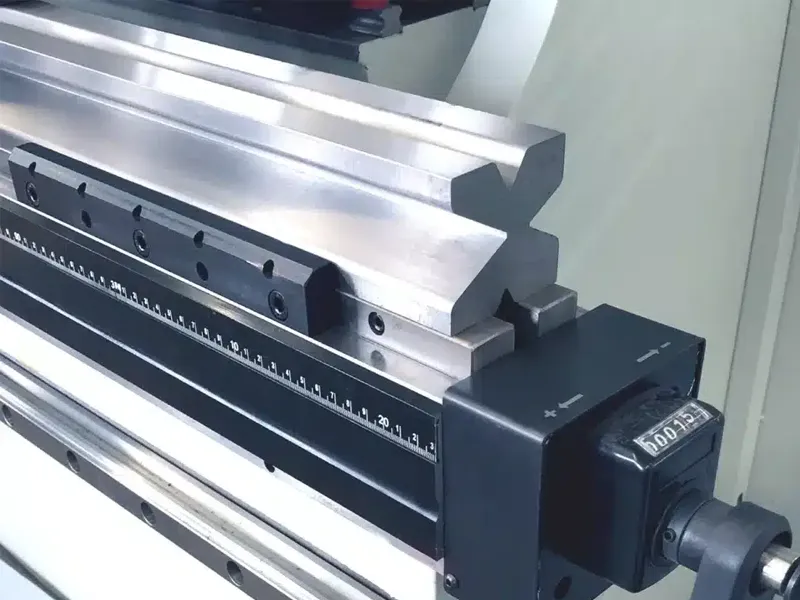

The WEIYA Manual crowning tables provide mechanical compensation to the deflections occurring during the bending process.

Advantage:

• Very precise bending angles

• Europe type dies with 60 mm and 90 mm

• Base can be clamped as well as single dies with 13 mm tang

• Manual crowning with a handle

• Precise positioning and alignment of the crowning table

• Easy and fast usage

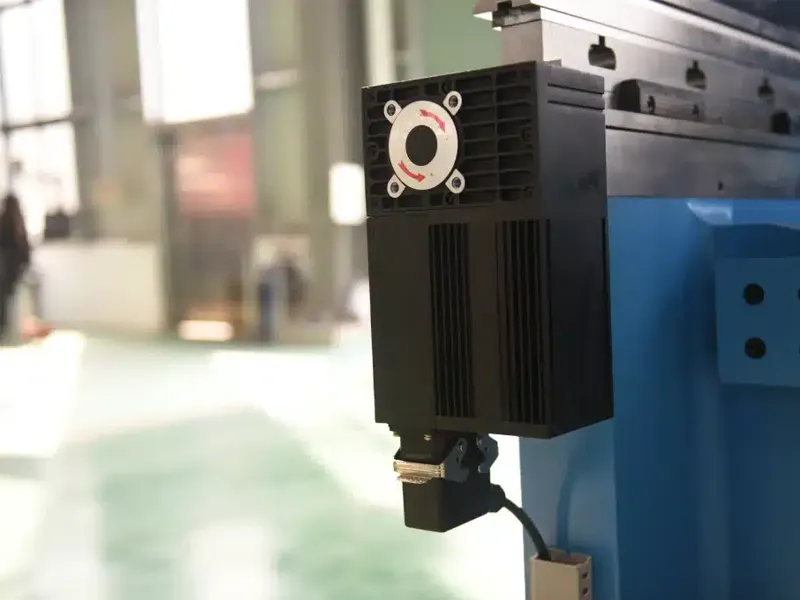

WEIYA’s CNC Crowning system allows the user to compensate for deformations in the beam during bending, ensuring a consistent angle along the entire length of the plate.

Tools can be easily reversed thanks to the symmetrical adaptation.

The machine can be operated either by a hand crank with a digital readout or through a direct connection to a CNC electric drive.

Hardened to 28-32 HRC, giving it significantly greater toughness than the competition.

Micro crowning every 200mm

T & Y adjustable 0–0.76mm (0–0.030″)

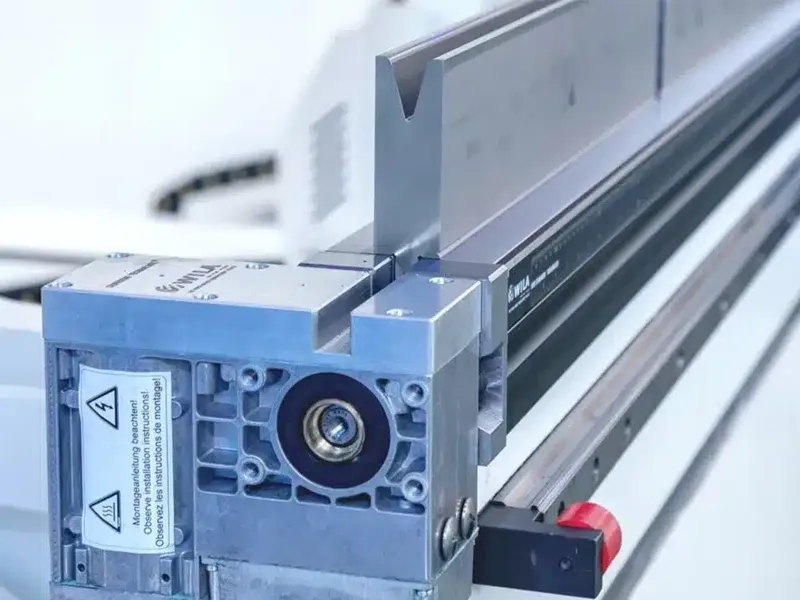

This WILA® system enables the user to offset deformations of the beam while bending. thus, the angle is keeping constant along the entire plate length.

Advantage:

• Easy reversibility of tools

• Hydraulic Clamping

• Quick clamping for the dies

Standard:

• Tool slot CNC-Deephardened®

• Drive unit CNC, Motor at one end

• Designed for press brakes with UPB-II hole pattern
