CNC Control System

• 10-inch LCD Touch Screen (Resistive):Offers a clear and intuitive operating interface.

• 2D Graphical Programming:Simplifies the bending process with touch 2D graphic part creation and manual sequencing.

• Precise Axis Control: Standard configuration for up to 4 axes (Y1, Y2, X, R)

• Automatic Crowning Calculation: Intelligently calculates and applies crowning compensation to ensure consistent bend angles.

• Modular Tool Library:Allows for configurable tools for each part or bend.

• Integrated Pressure Valve Control:Direct angle correction with integrated control for crowning, proportional, and pressure valves.

• Free Off-line PC Software: Reduce machine downtime by preparing and simulating programs on a PC.

• Optional Expansions: Ready for tandem machine management and Modbus TCP interface for SCADA or MES integration.

• 15-inch LCD Touch Screen (Resistive):A larger screen for an enhanced visual and operational experience.

• Advanced 2D Graphical Programming: Features touch 2D graphic part creation with automatic sequence generation.

• Expanded Multi-Axis Capability:Standard 4-axis control, expandable up to 6 axes to handle complex workpieces.

• Automatic Bending Force Calculation: Automatically calculates the required bending force and crowning value.

• Flexible Tool Management: Offers modular tools for each part or bend.

• Integrated Valve & Amplifier Control:Direct angle correction with integrated control of proportional and pressure valve amplifiers for faster response.

• Free Off-line PC Software: Enables production simulation and preparation on a PC.

• Optional Advanced Functions: Supports tandem management for up to 4 machines and Modbus TCP interface for SCADA/MES integration.

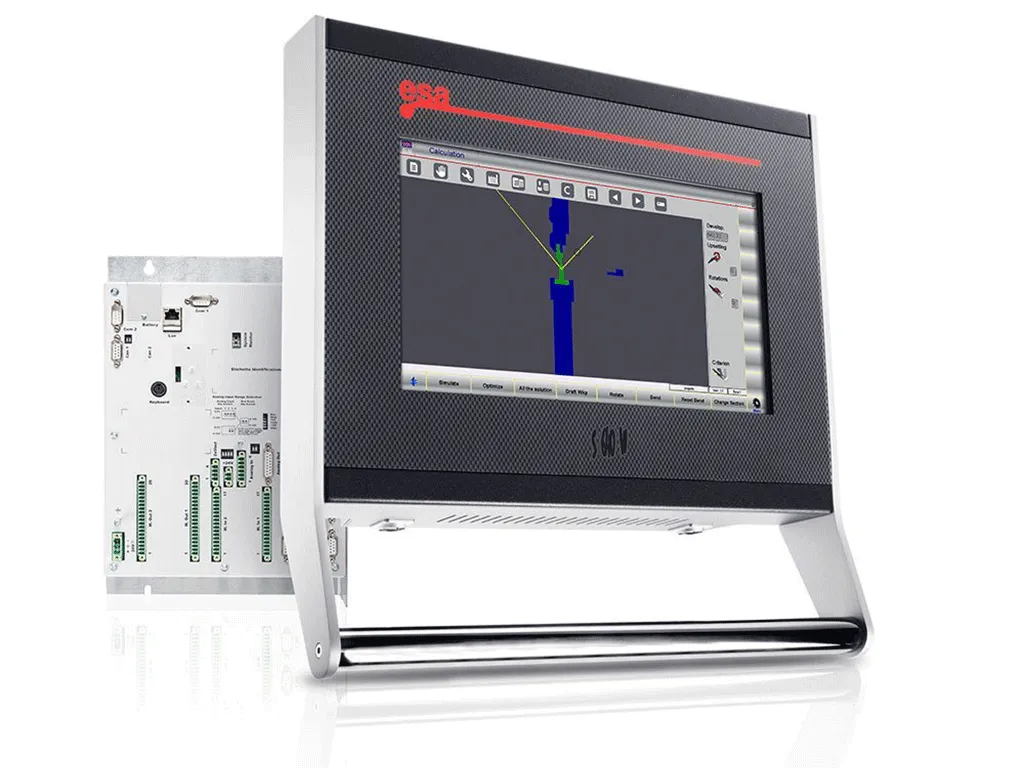

• 15-inch LCD Touch Screen (Resistive): Provides a wide, clear view for complex operations.

• Powerful On-Board PC: Capable of running full 3D CAD/CAM software directly on the controller.

• Direct DXF/DWG Import (Optional): Creates a seamless link to your design department, simplifying programming.

• Flexible Axis Control: Standard 4-axis control, expandable up to 32 axes to meet the most complex processing demands.

• 2D Touch-Screen Programming: Includes automatic sequence creation for fast and easy programming.

• Automatic Calculation & Compensation:Automatically calculates bending force and crowning values.

• Optional Professional Software & Functions:

Tandem machine management (up to 4 machines).

Modbus TCP interface for SCADA or MES.

Angle measurement management systems (DataM or Iris Plus).

3D viewers for Metalix, Radan, and AutoPol.

EsaBend 3D software.

• 18.5-inch Full HD Multi-Touch Screen: Delivers an incredibly fluid, tablet-like touch experience.

• Modern Frameless Design: Simple, powerful, and elegant, reflecting its high-end capabilities.

• Finger-Tip Workpiece Design: Supports intuitive, direct-on-screen part design and manipulation.

• Comprehensive File & Tool Management: Supports import of tools shapes and DXF files.

• Full management of the tool library (punches and dies).

• Support for the DataM angle measurement system.

• Advanced 3D Simulation: Equipped with Esa 3D Bend software for realistic process simulation.

• Industry 4.0 Ready: Standard with Modbus TCP interface, fully prepared for smart factory integration.

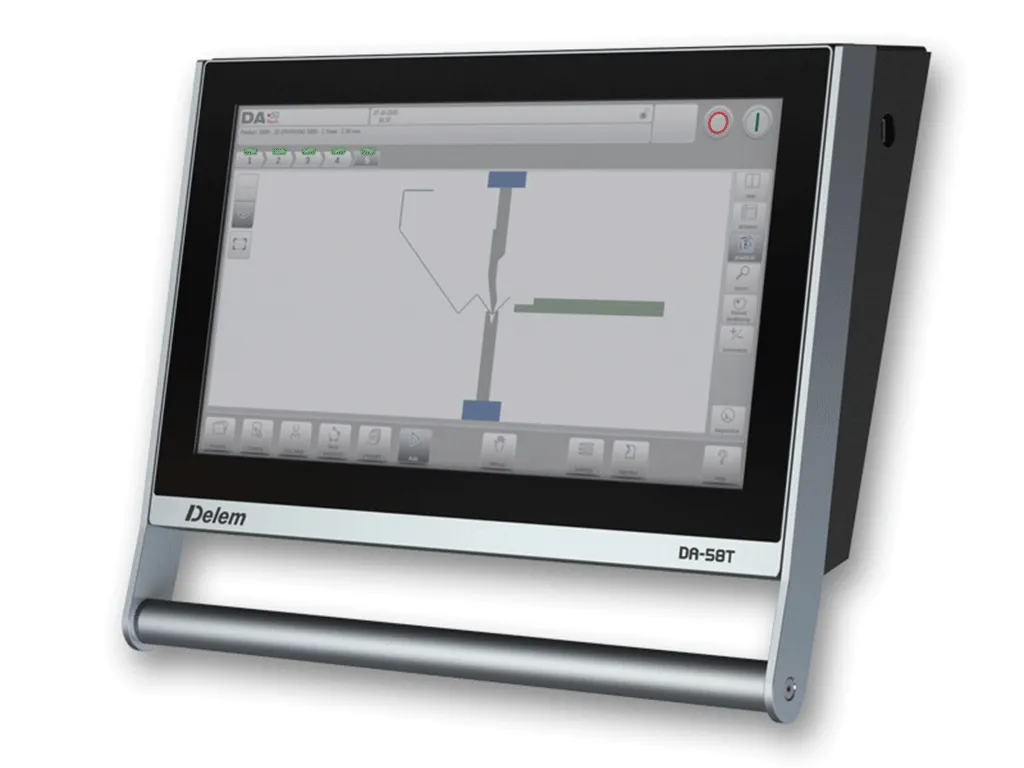

Delem DA-50 series offers advanced CNC press brake control with intuitive touchscreen operation for most standard bending applications

2D graphical touch screen programming mode

17" high resolution colour TFT

Full Windows application suite

Delem Modusys compatibility (module scalability and adaptivity)

USB, peripheral interfacing

User specific application support within the control's multitasking  environment

Sensor bending & correction interface Profile-TL offline software

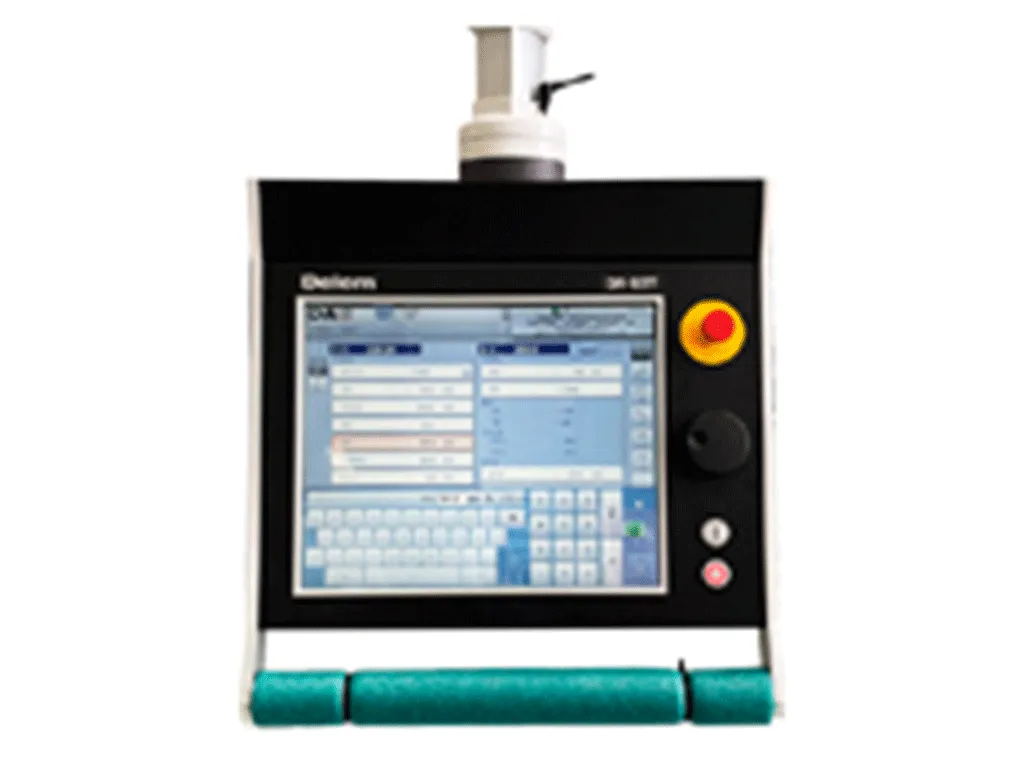

3D and 2D graphical touch screen programming mode

3D visualisation in simulation and production

17" high resolution colour TFT

Full Windows application suite

Delem Modusys compatibility (module scalability and adaptivity)

USB, peripheral interfacing

User specific application support within the control's multitasking environment

Sensor bending & correction interface

Profile-T3D offline software
