Bending Follower Supports

The hydraulic press brake with a sheet support follower system is utilized for bending long and thin sheets. It primarily comprises of a duo of sheet supports positioned at the front of the machine at the same height as the bending line or bottom tool. These supports are managed by the CNC, dutifully following and propping up the sheet throughout the bending procedure.

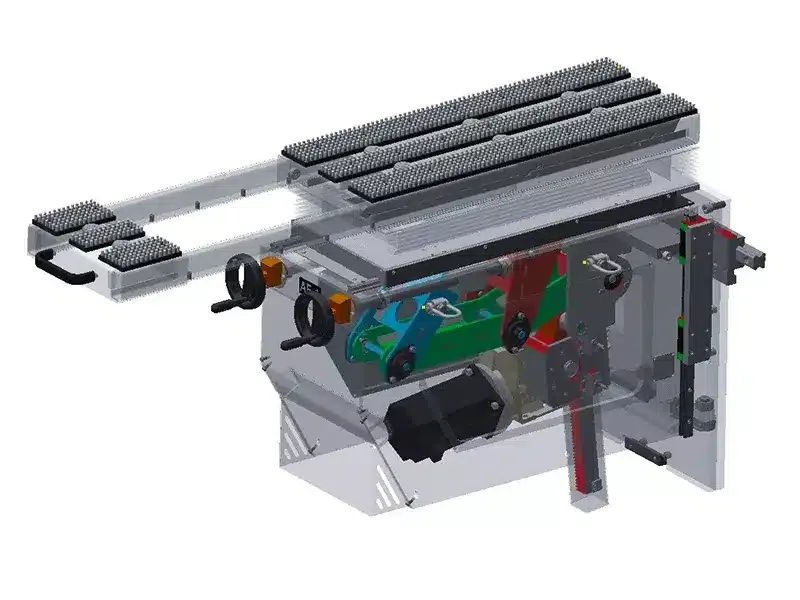

Automatic bending follower supports

AP1 – AP2 CNC-controlled interpolated axes

Recommended for heavy parts or large thin plate

Bend as closed as 70°

Load capacity – 180 kg per support

Brush and support shaft dim 350×900 up to 1200 mm

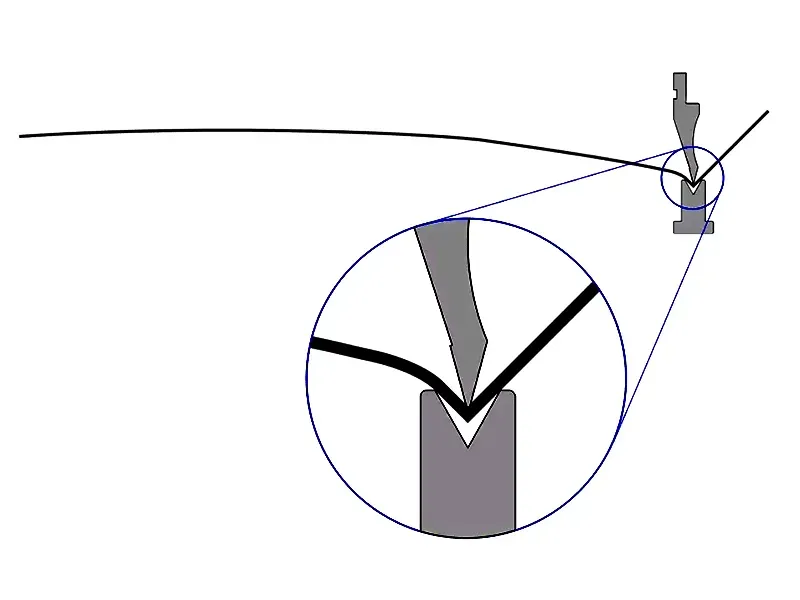

A counterbend can occur when attempting to bend a large, heavy, and thin plate. This phenomenon happens due to the overhang, which generates a torque that causes the sheet to bend around the die edge under its weight. A visual representation of this can be seen in the drawing. To prevent this type of damage, a sheet lifter should be used to support the plate throughout the entire bending cycle.

AP1 – AP2 CNC-controlled interpolated axes

Light solution, easy to move

Adjustable according to the size of the workpiece

Improved shop floor efficiency

Less physical strain and safety risks

Protection from counterbends and scratches

Bend as closed as 70°

R axis -30/+170 mm; maximum die opening 100 to 160 mm

Brush and support shaft dim. 350×900 mm extendable up to 1200 mm.

The sheet follower is equipped with an LED light to enable direct control of active or inactive modes, thereby mitigating any potential safety hazards.

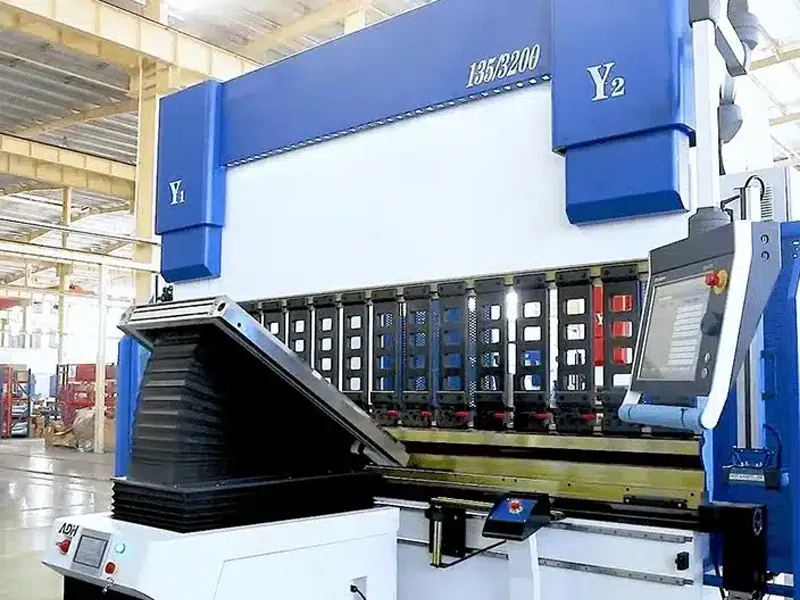

The most recent sheet metal bending followers are designed to enhance the performance of our press brakes by decreasing setup time and streamlining the operators’ work. These bending aids offer significant practical support, such as automatic height adjustment, particularly for handling heavy or oversized components.
