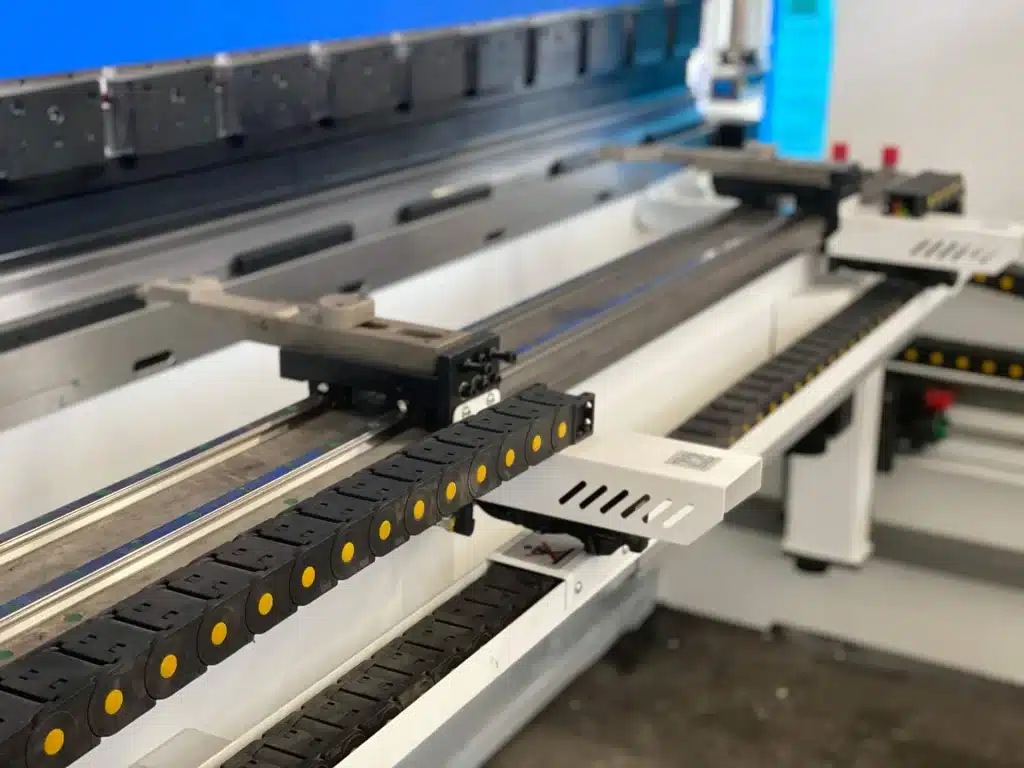

Weiya delivers fast, accurate, and robust press brake solutions. We offer 2, 4, and 6-axis support brackets and will consult with you to configure the optimal setup for your specific bending requirements.
Ball screws and linear guide on X, R-axis
Axis X speed 500 mm/s.
Manual Z1, Z2-axis with HIWIN linear guide
Mechanical accuracy ± 0.03 mm.
Fingers with double stop and micrometric adjustment.

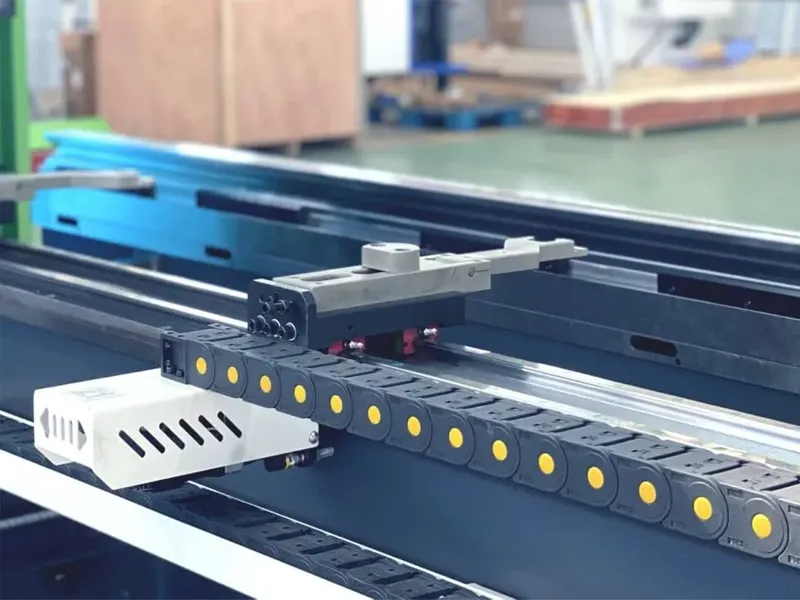

Ball screws and linear guide on X, R-axis
Precision belts and YYC rack on axes Z1‐Z2.
Fingers with double stop and micrometric adjustment.
Mechanical accuracy ± 0.03 mm.
Axes Z1‐Z2 speed 1000 mm/s.
Axis X speed 500 mm/s
Ball screws and linear guide on X, R-axis
Precision belts and YYC rack on axes Z1‐Z2.
Fingers with double stop and micrometric adjustment.
Mechanical accuracy ± 0.03 mm.
Axes Z1‐Z2 speed 1000 mm/s.
Axis X speed 500 mm/s.
SPA Thin supports system in the fingers.
Load capacity – 30 kg per support.

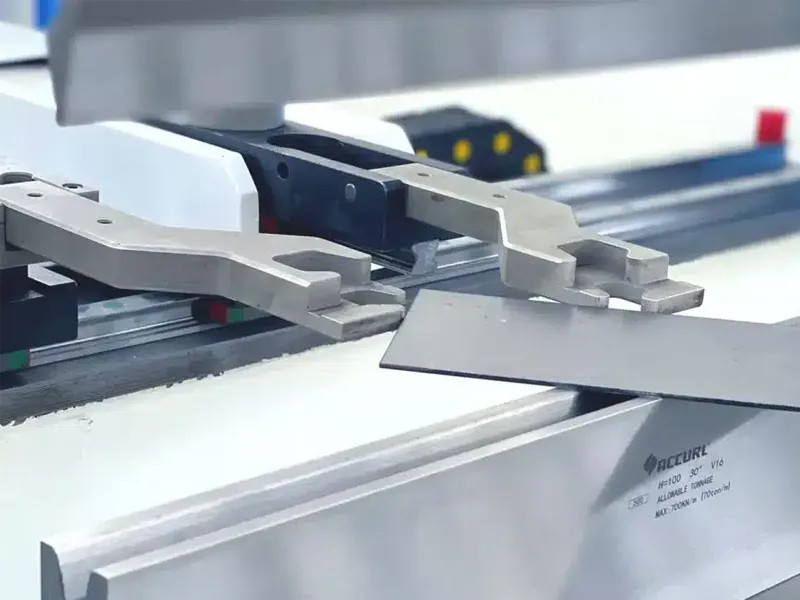

Ball screws and linear guide on X, R-axis
Precision belts and YYC rack on axes Z1‐Z2.
Fingers with double stop and micrometric adjustment.
Mechanical accuracy ± 0.03 mm.
Axes Z1‐Z2 speed 1000 mm/s.
Axis X speed 500 mm/s.
Axis Delta X speed 500 mm/s.

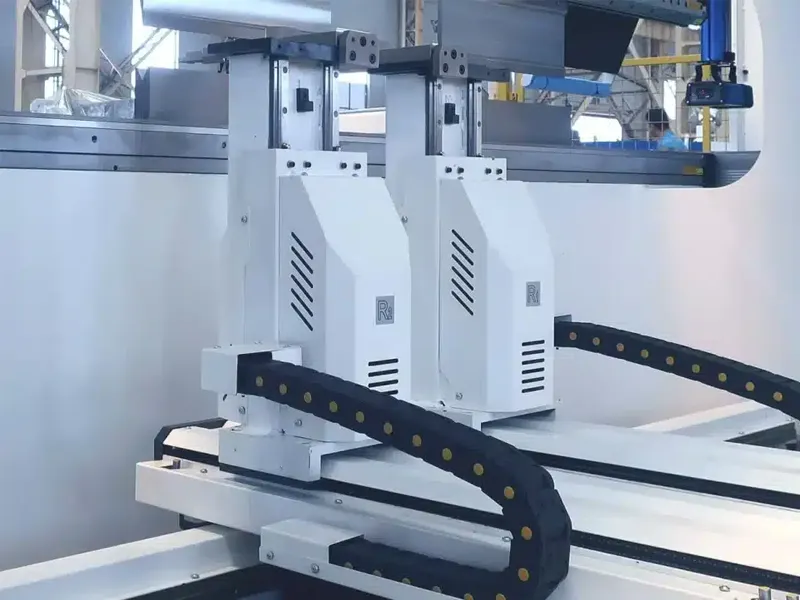

Ball screws and linear guide on X, R-axis
Precision linear guide and YYC rack on axes Z1‐Z2.
Fingers with double stop and micrometric adjustment.
Mechanical accuracy ± 0.03 mm.
Axes R1‐R2 speed 500 mm/s
Axes X1‐X2 speed 600 mm/s. (1000 mm/s optional)
Axes Z1‐Z2 speed 1100 mm/s.
